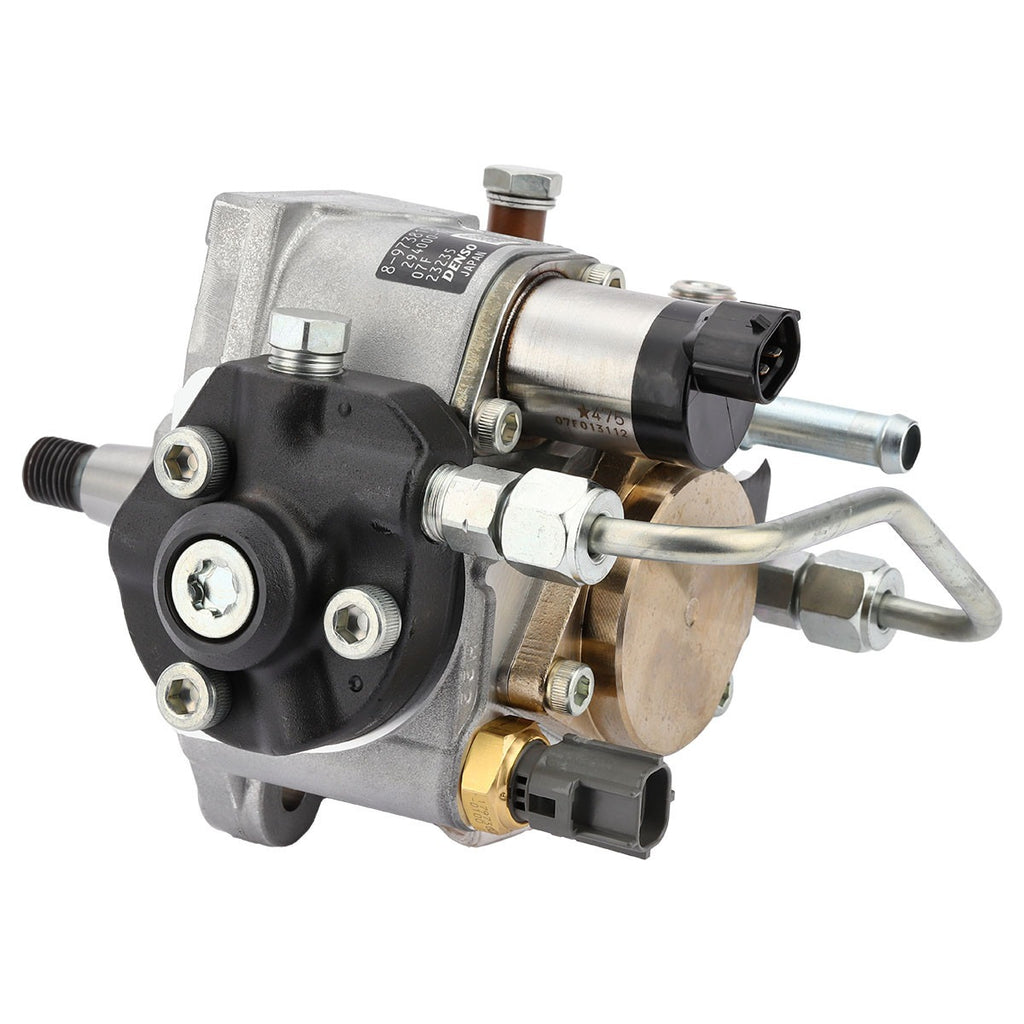

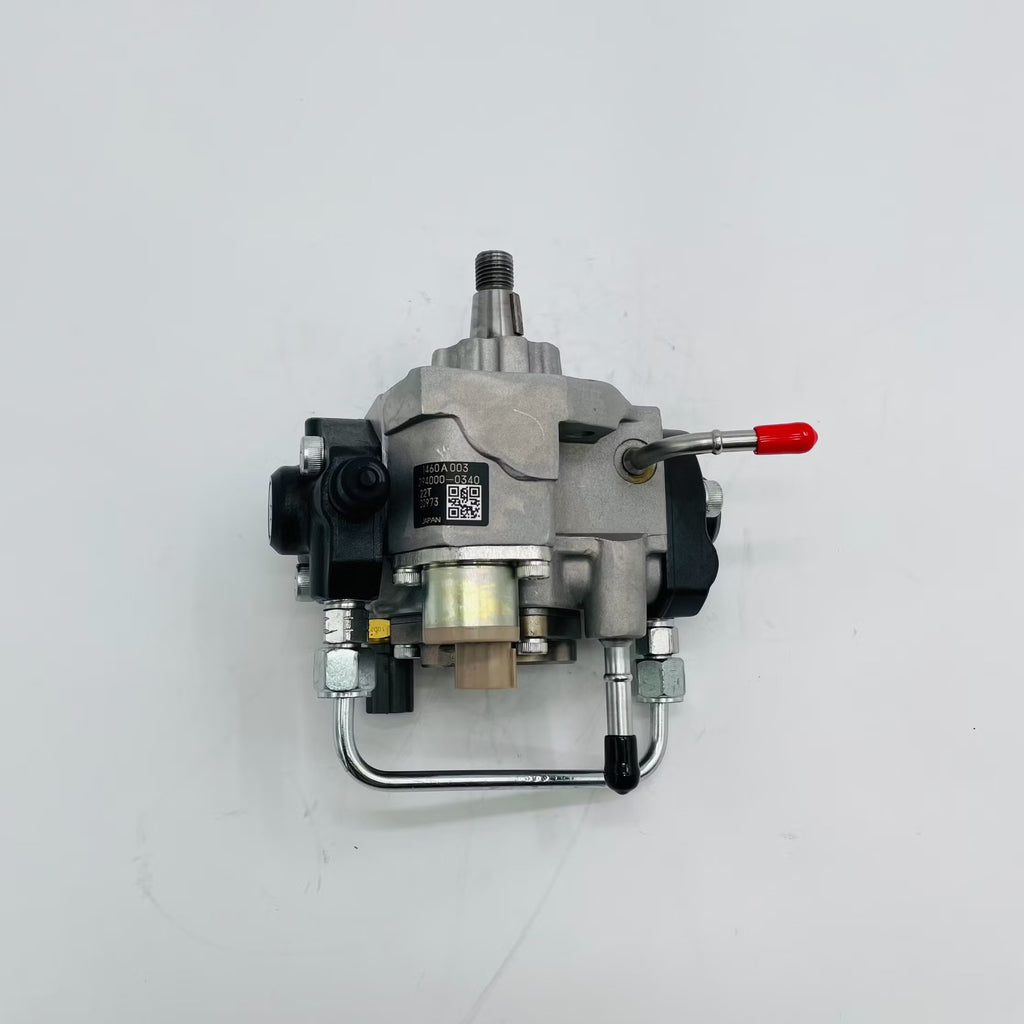

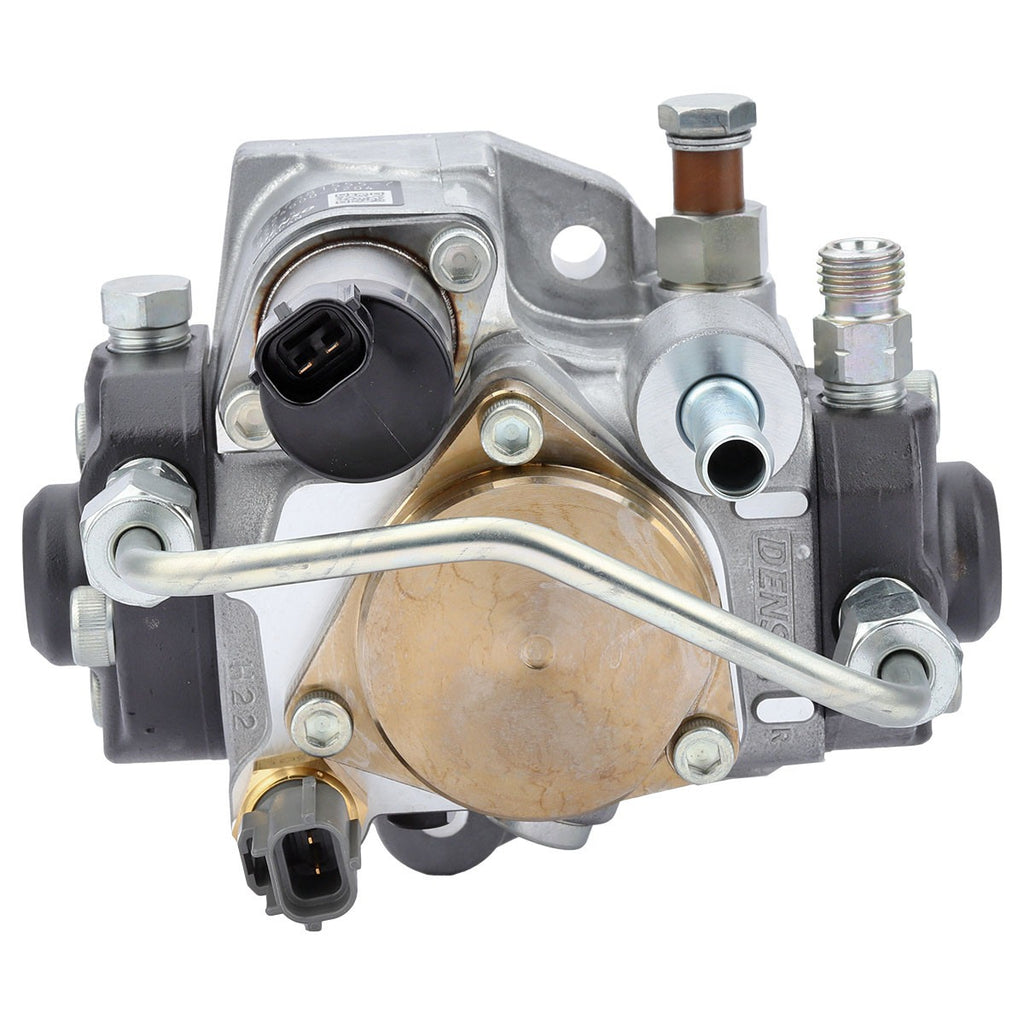

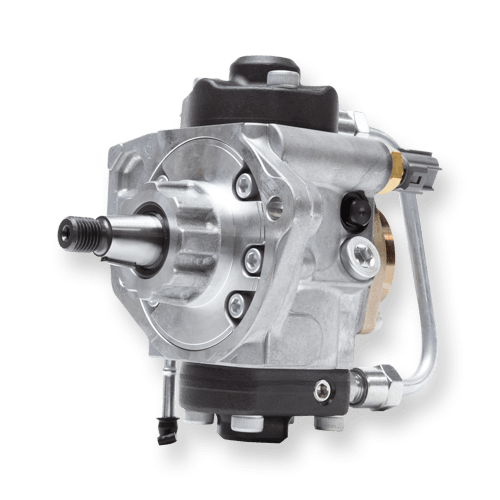

Used Denso HP3 High-Pressure Diesel Fuel Injection Pump

The Denso HP3 is a widely utilized high-pressure common-rail diesel injection pump, common in light-to-medium duty diesel engines (often found in applications such as Toyota, Mitsubishi, and various industrial equipment). Because this is a high-precision component that handles extreme internal pressures (exceeding 20,000 PSI in some configurations), its condition is critical to engine performance and longevity.

Key Technical Considerations for Used Units

• Internal Wear Components: The HP3 relies on internal roller shoes, plungers, and a camshaft. In used units, these surfaces are prone to "metal-on-metal" wear, which can introduce metallic debris into the fuel rail and injectors, potentially causing catastrophic secondary failure.

• Seal Integrity: Used pumps often sit for extended periods, causing internal O-rings and gaskets to dry out or crack, leading to external fuel leaks or internal pressure loss upon re-installation.

• Solenoid/SCV Condition: The Suction Control Valve (SCV) is the primary electronic controller for fuel volume. These are frequent failure points; if testing a used pump, verify that the SCV does not stick and responds correctly to the Engine Control Unit (ECU) signals.

• Contamination Risks: Fuel pumps must be handled in a surgically clean environment. Any particulate matter or water ingress into the fuel intake will immediately compromise the pumping elements.

Inspection Checklist for Used Units

• Shaft Play: Check for excessive radial play in the drive shaft, which indicates bearing fatigue.

• Fuel Feed Condition: Inspect the intake and return ports for metal shavings. If debris is found, the pump is likely nearing the end of its service life.

• Bench Test Verification: A used HP3 should ideally be tested on a certified common-rail test bench to confirm it meets the manufacturer's specified flow and pressure delivery requirements across the full RPM range.
