Stainless Steel Exhaust Multiple Engine Cylinder For Chevrolet Camaro or Cadillac CTS

Stainless Steel Exhaust Headers for Chevrolet Camaro & Cadillac CTS

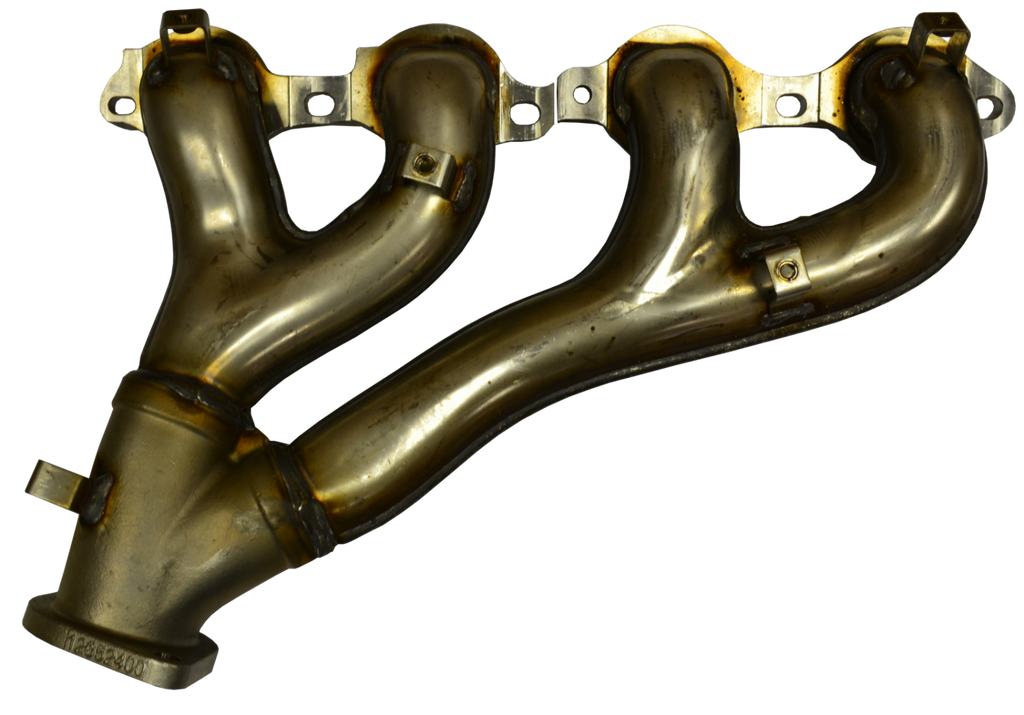

Unleash hidden horsepower, improve scavenging efficiency, and deliver an aggressive acoustic signature to your GM performance platform with Stainless Steel Exhaust Headers. Specifically designed for multi-cylinder layouts like the high-output V6 and legendary LS/LT V8 engines found in the Chevrolet Camaro and Cadillac CTS, these manifold replacements optimize exhaust gas flow. By isolating individual cylinder pulses, they eliminate backpressure and significantly increase performance over restrictive factory cast-iron manifolds.

Camaro Shorty Headers. Source: BBK Performance / Chevrolet Camaro SS LT1 6.2L 1-3/4 Shorty Exhaust Headers Titanium

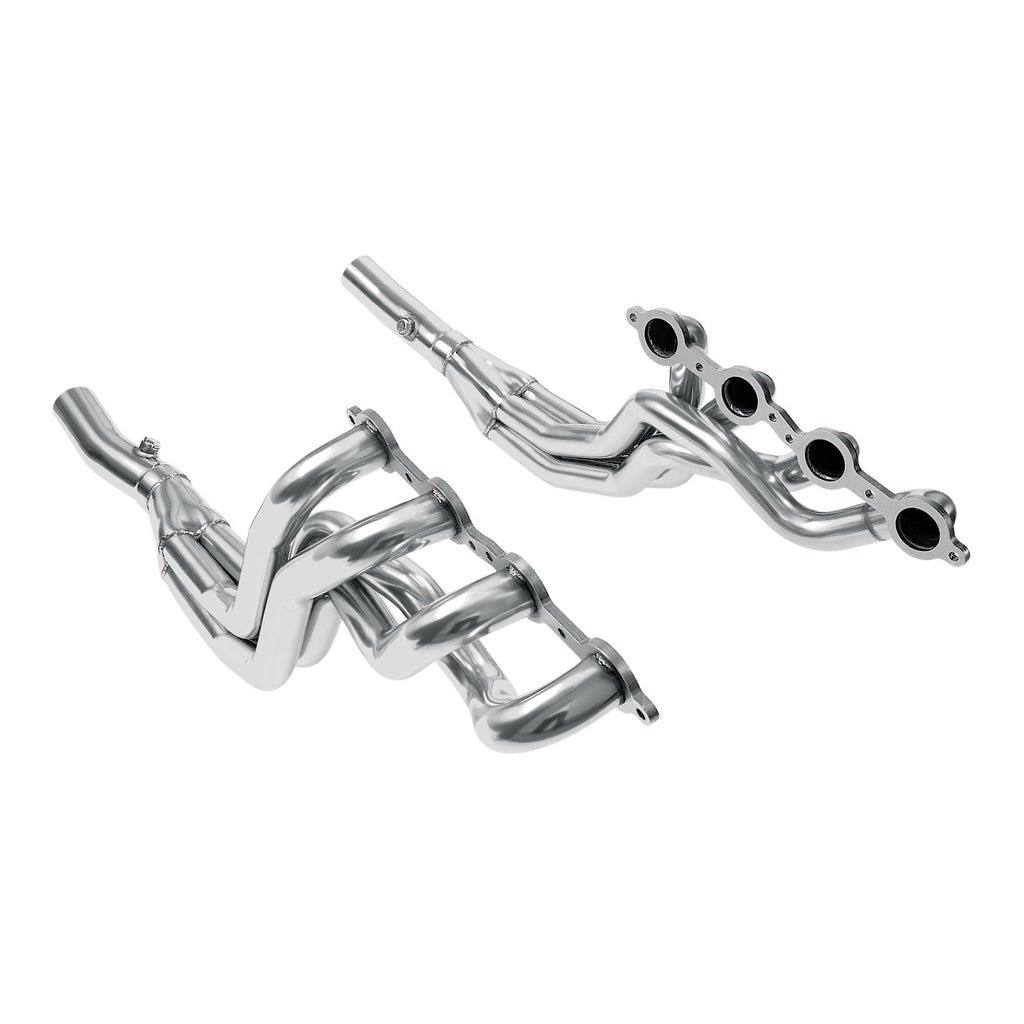

Cadillac CTS-V Long-Tube Headers. Source: Wragth Motorsports / Stainless Works 2009-15 Cadillac CTS-V Headers 2in Primaries High ...

Engineering Layouts: Long-Tube vs. Shorty Headers

When upgrading your multiple-engine cylinder configuration, choose between two distinct plumbing profiles depending on your performance goals:

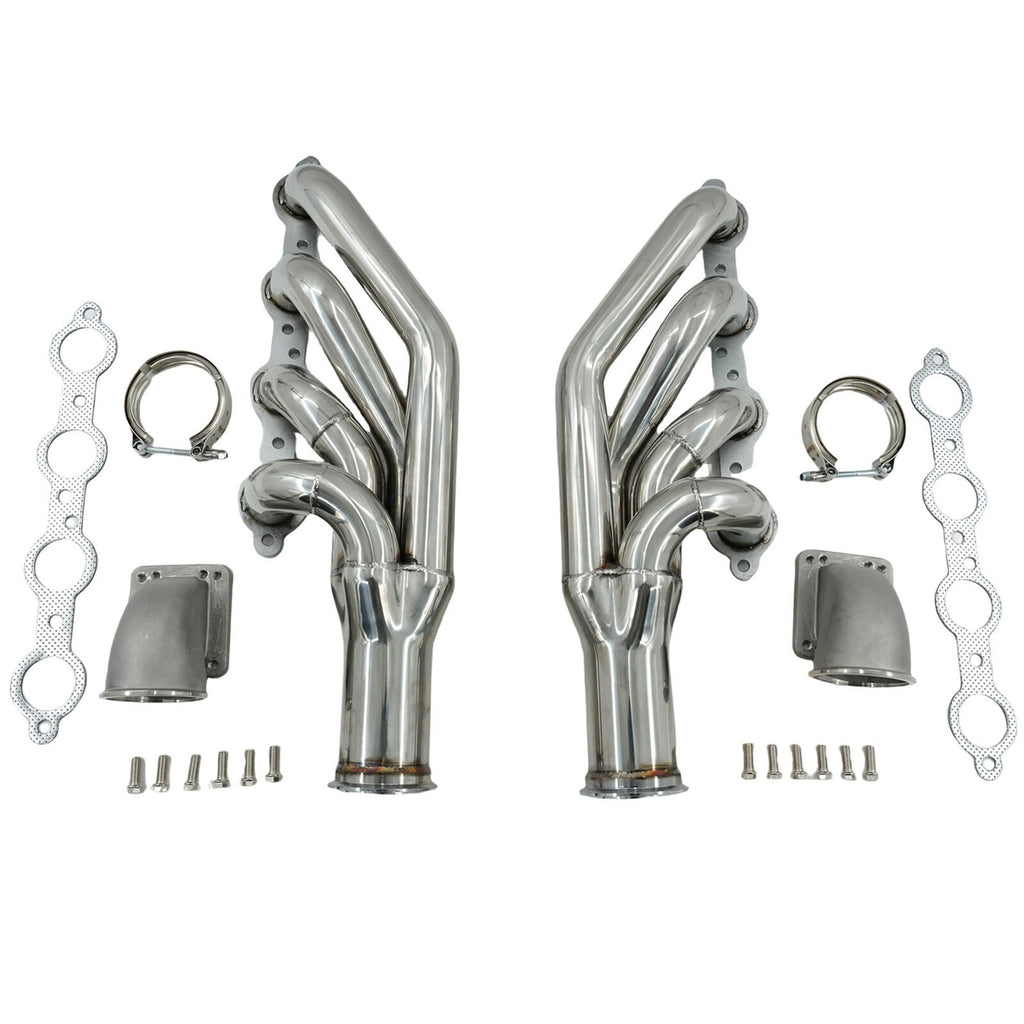

• Long-Tube Headers: Feature elongated primary tubes that merge into a single collector far beneath the chassis. This layout maximizes scavenged velocity and creates substantial horsepower and torque gains in the mid-to-high RPM bands—ideal for dedicated track builds and forced-induction setups.

• Shorty Headers: Compact, space-saving manifolds that bolt directly to the factory mid-pipes. They improve lower-end throttle response while offering a straightforward installation that maintains standard emissions positions and clearance limitations.

Key Application Profiles

1. Chevrolet Camaro (Gen 5 & Gen 6)

• V8 Configurations (SS & ZL1): Designed with large 1.75-inch to 2.0-inch primary tubes tailored for the high-displacement LT1, L99, and supercharged LSA/LT4 powerplants to safely handle massive exhaust flow volumes.

• V6 Configurations: Specifically engineered with equal-length 3-into-1 collectors to balance exhaust pulses, producing a clean, rasp-free performance tone.

2. Cadillac CTS & CTS-V

• CTS-V Track Platforms: Engineered to accommodate tight clearances within luxury sport engine bays while unlocking maximum flow capacity for supercharged setups.

• CTS V6 Sedans & Coupes: Constructed to reduce drone and preserve cabin refinement while delivering noticeable throttle response gains.

Core Product Features:

• Mandrel-Bent T304 Stainless Steel: Constructed with smooth, uniform bends that maintain full inner diameter sizing throughout the tube, eliminating flow restrictions.

• Heavy-Duty CNC Laser-Cut Flanges: Thick, warp-resistant mounting flanges ensure an absolute flush seal against the engine cylinder head to permanently eliminate dangerous exhaust leaks.

• Precision TIG Welding: Features hand-crafted or robotic tungsten inert gas (TIG) welds at every joint interface to withstand intense track thermal cycling without cracking.

• Optimized Cylinder Scavenging: Equal-length primary tube routing ensures exhaust pulses pull subsequent cycles smoothly out of the cylinder chambers.

Technical Specifications:

• Product Type: High-Performance Exhaust Manifold Header Upgrade (Sold as a Left/Right Set)

• Material Base: Aircraft-Grade T304 Stainless Steel (Available with raw, polished, or high-temp ceramic-coated finishes)

• Flange Thickness: 3/8-inch (9.5mm) Precision-Ground Steel

• Collector Integration: Built-in high-velocity collectors with directional scavenge spikes

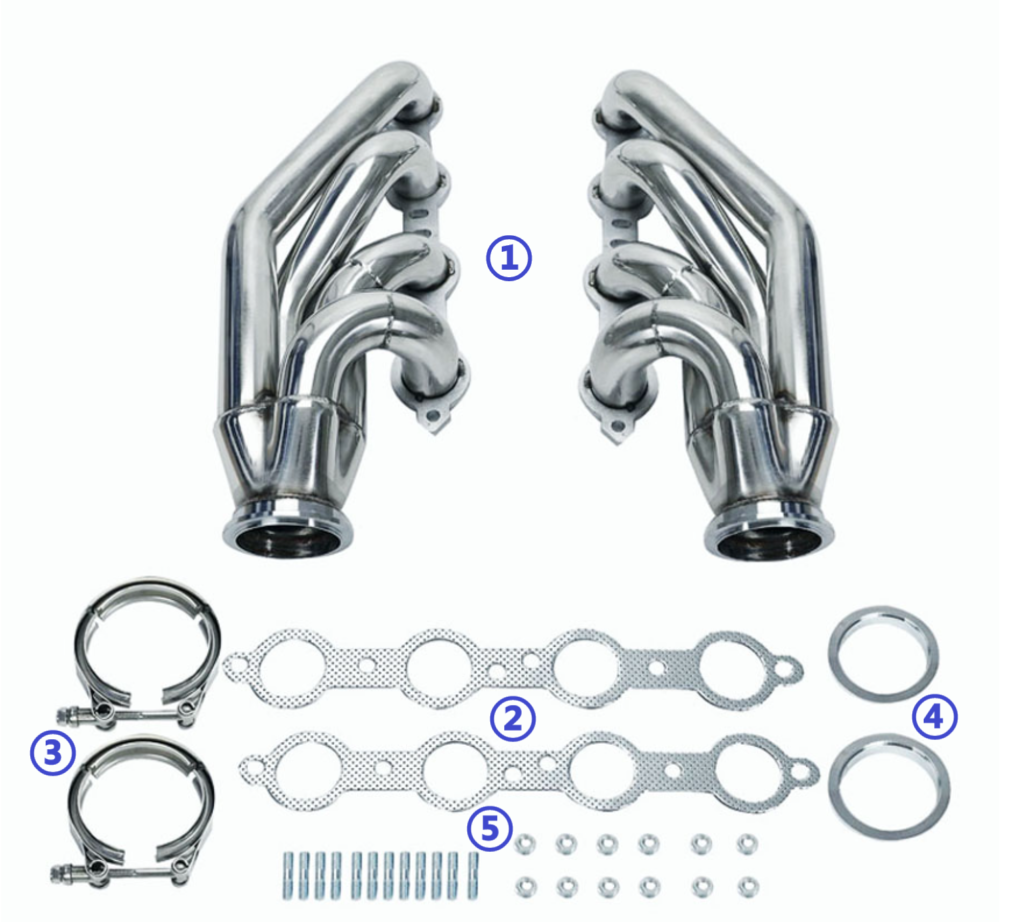

• Installation Note: Includes matching multi-layer steel (MLS) port gaskets and high-tensile header bolts. Long-tube variants will require matching mid-pipes (X-pipe or H-pipe) and custom ECM tuning to clear catalytic converter efficiency codes.
