MacPherson Strut Suspension

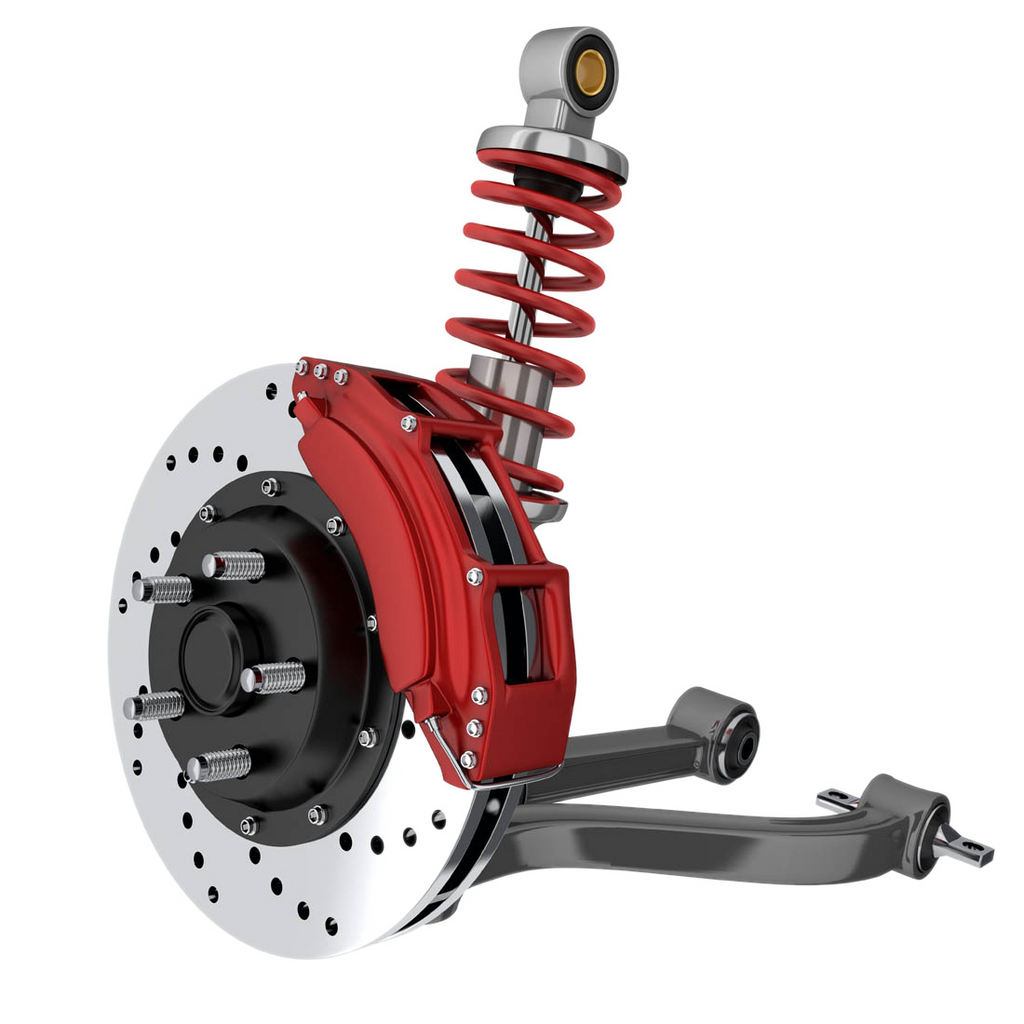

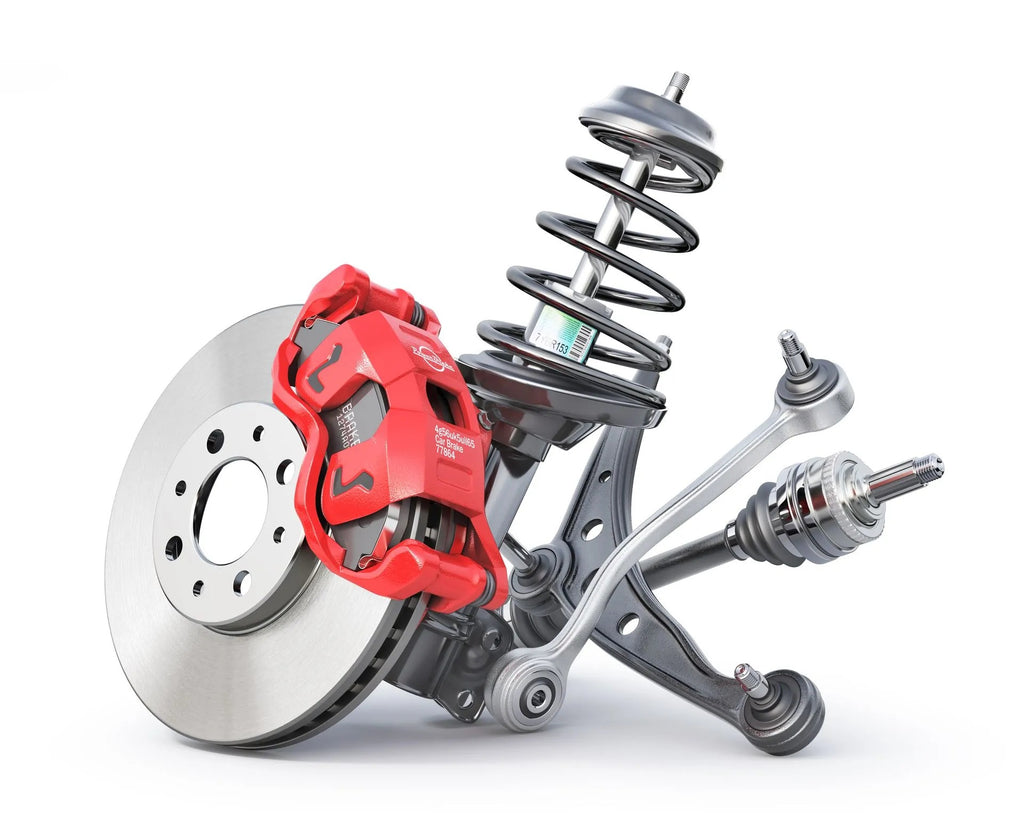

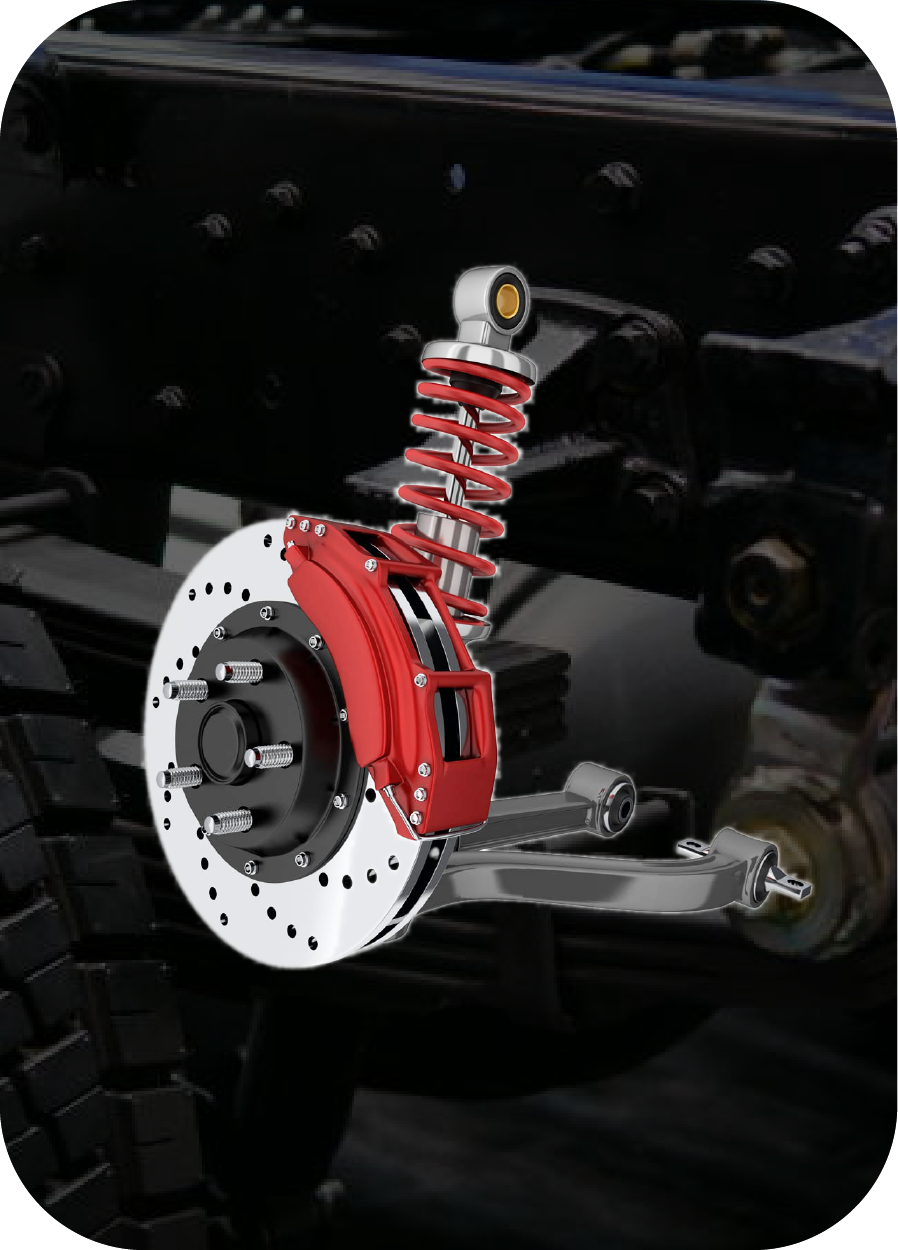

The MacPherson strut is one of the most widely utilized automotive suspension systems, favored for its simplicity, compact design, and cost-effectiveness. It integrates the shock absorber and the coil spring into a single structural unit, which acts as both a damping device and a functional part of the vehicle’s steering and suspension geometry.

Core Mechanics

• Integrated Design: Unlike double-wishbone systems, the MacPherson setup uses the strut itself as a primary structural member. The top of the strut is mounted to the vehicle's chassis (the strut tower), while the bottom is connected to the wheel hub assembly.

• Geometry: A lower control arm (wishbone) is used to locate the wheel laterally and longitudinally, while the strut handles the vertical loads and steering pivot movement.

• Steering Function: Because the entire strut assembly rotates with the steering knuckle, it requires a top-mount bearing to allow the spring and strut to rotate freely without binding during steering maneuvers.

Advantages

• Space Efficiency: The compact, upright design occupies less engine bay width compared to double-wishbone systems, providing more room for engine and accessory packaging.

• Weight & Cost: Reduced parts count (fewer control arms and ball joints) results in a lighter overall assembly and lower manufacturing/maintenance costs.

• Ease of Maintenance: Individual struts are relatively straightforward to replace, making them a common item for standard automotive repair.

Considerations for Performance and Maintenance

• Load Distribution: Because the strut bears significant vertical, lateral, and braking loads, the top strut mounts (bearings) are frequent wear items that can cause steering "clunking" or imprecise handling if they fail.

• Performance Limits: During aggressive cornering, MacPherson struts may experience greater camber change compared to double-wishbone setups, which can limit ultimate tire contact patch optimization in high-performance applications.

• Component Replacement: When replacing struts, it is standard practice to inspect the coil springs and strut mounts, as the entire assembly is often under significant spring tension and requires a strut compressor for safe disassembly.
