Putco Blade LED Tailgate Light Bar

Putco Blade LED Tailgate Light Bar

Maximize your truck’s rear visibility and style with the Putco Blade LED Tailgate Light Bar. Engineered as a premium, high-intensity lighting upgrade, this light bar fits seamlessly into the gap between your tailgate and rear bumper. It provides crisp, high-definition signaling functions that mirror your vehicle's factory taillight outputs, ensuring your braking, turning, and reversing maneuvers are unmistakably clear to drivers behind you.

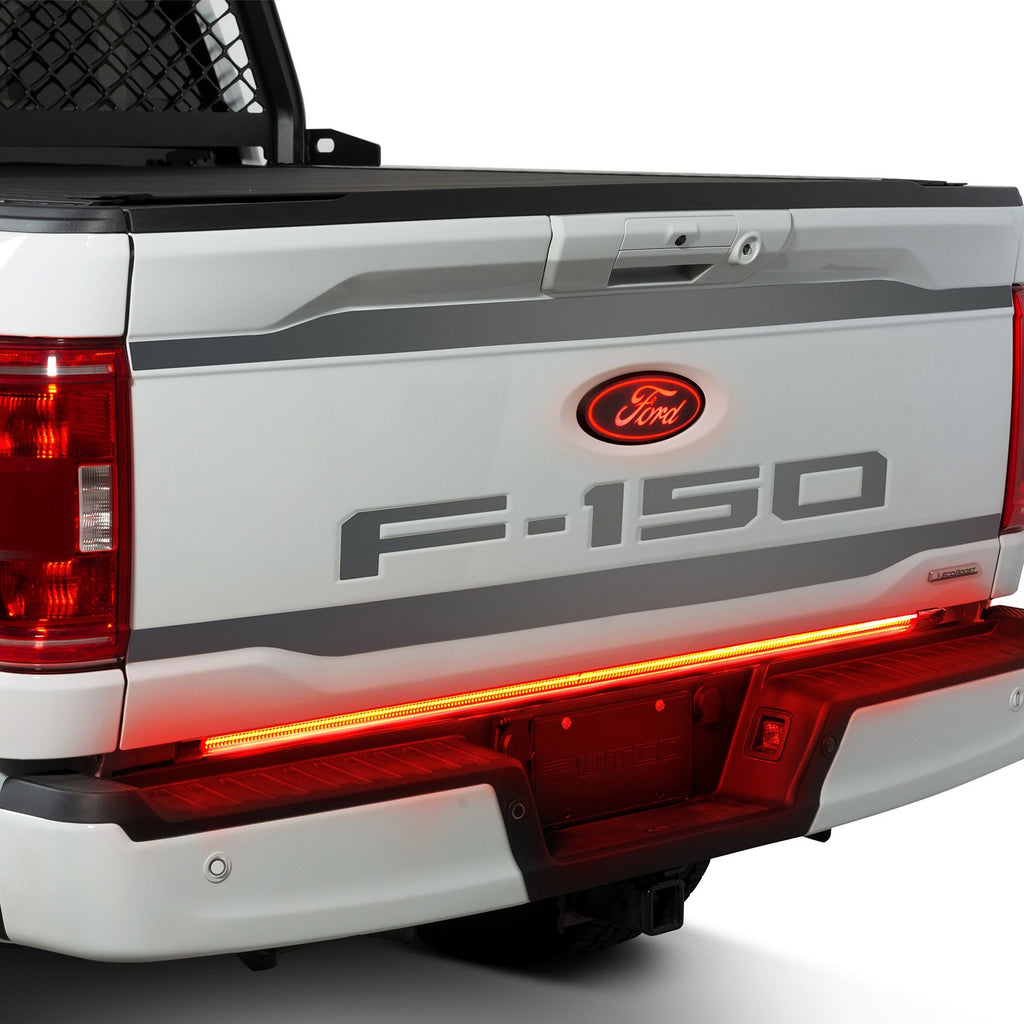

Putco Blade LED Tailgate Light Bar. Source: Putco

Constructed with a fully encapsulated, marine-grade polymer housing, the Blade is built to survive harsh road salt, heavy rain, and pressure washers. Featuring a dense array of high-power COB (Chip-on-Board) LEDs, it emits a solid, brilliant line of light that eliminates the pixelated "dotted" appearance of budget light strips.

Key Features:

• High-Definition Signaling: Syncs perfectly with your truck's lighting system to provide brilliant red running lights, intense brake lights, progressive amber sequential turn signals, and high-output white reverse illumination.

• High-Power COB LED Technology: Houses thousands of miniature, tightly packed LEDs beneath a tinted lens layer to produce an ultra-bright, continuous light output beam.

• Weatherproof Construction: Fully potted in a flexible, marine-grade material that shields internal electronics from extreme dust, sub-zero cold, and moisture infiltration.

• Mega-Bright Reverse Lighting: Emits high-lumen white light when shifted into reverse, effectively operating as an auxiliary work light to clear up backup camera feeds in dark conditions.

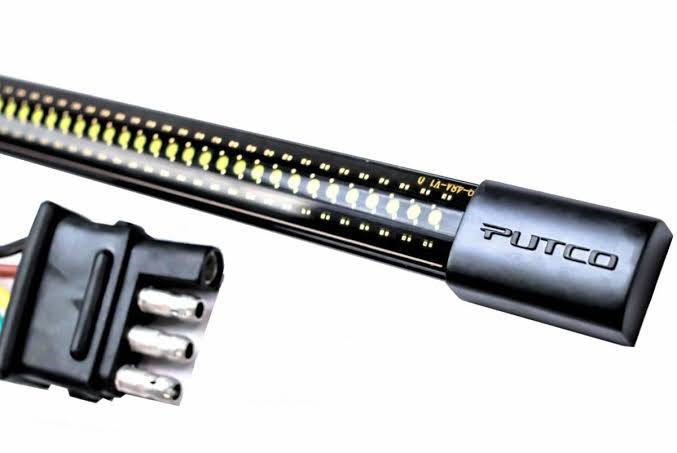

• Streamlined Plug-and-Play Setup: Equipped with a standard 4-pin flat trailer harness connector for immediate power routing, keeping installation straightforward.

Technical Specifications:

• Product Type: Tailgate Auxiliary LED Light Strip

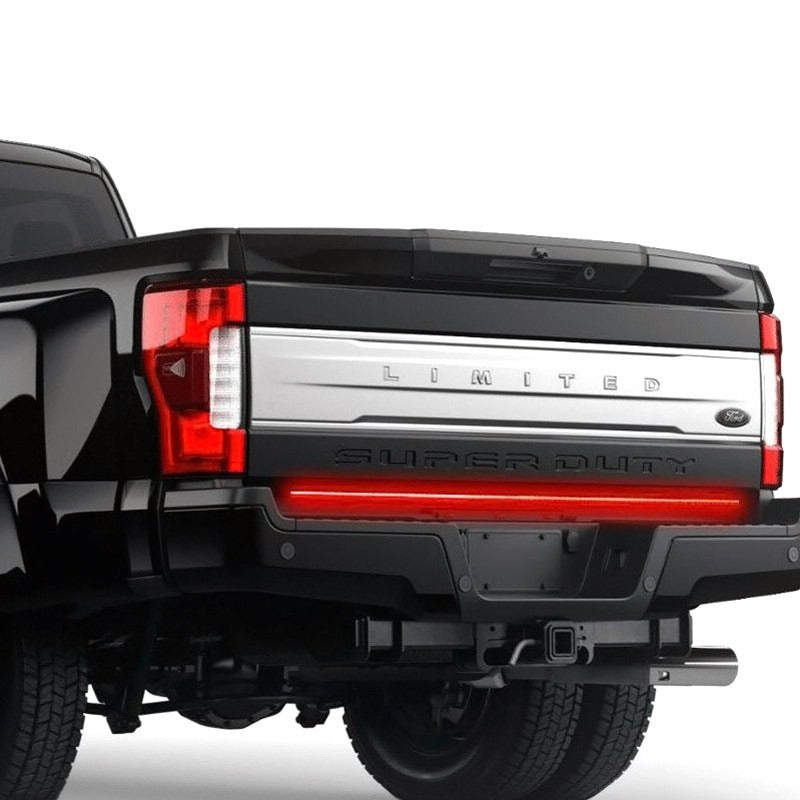

• Available Lengths: 48-Inch (Mid-Size Trucks) and 60-Inch (Full-Size Trucks like the Ford F-150, Super Duty, Silverado, and RAM)

• Housing Base: Fully Encapsulated Polycarbonate Structure

• Light Outputs: Red (Running/Brake), Amber (Sequential Turn Signal), 6000K White (Reverse Mode)

• Electrical Connection: 4-Pin Flat Trailer Adapter (Hardwiring required for reverse light operation or on trucks with advanced trailer detection modules)

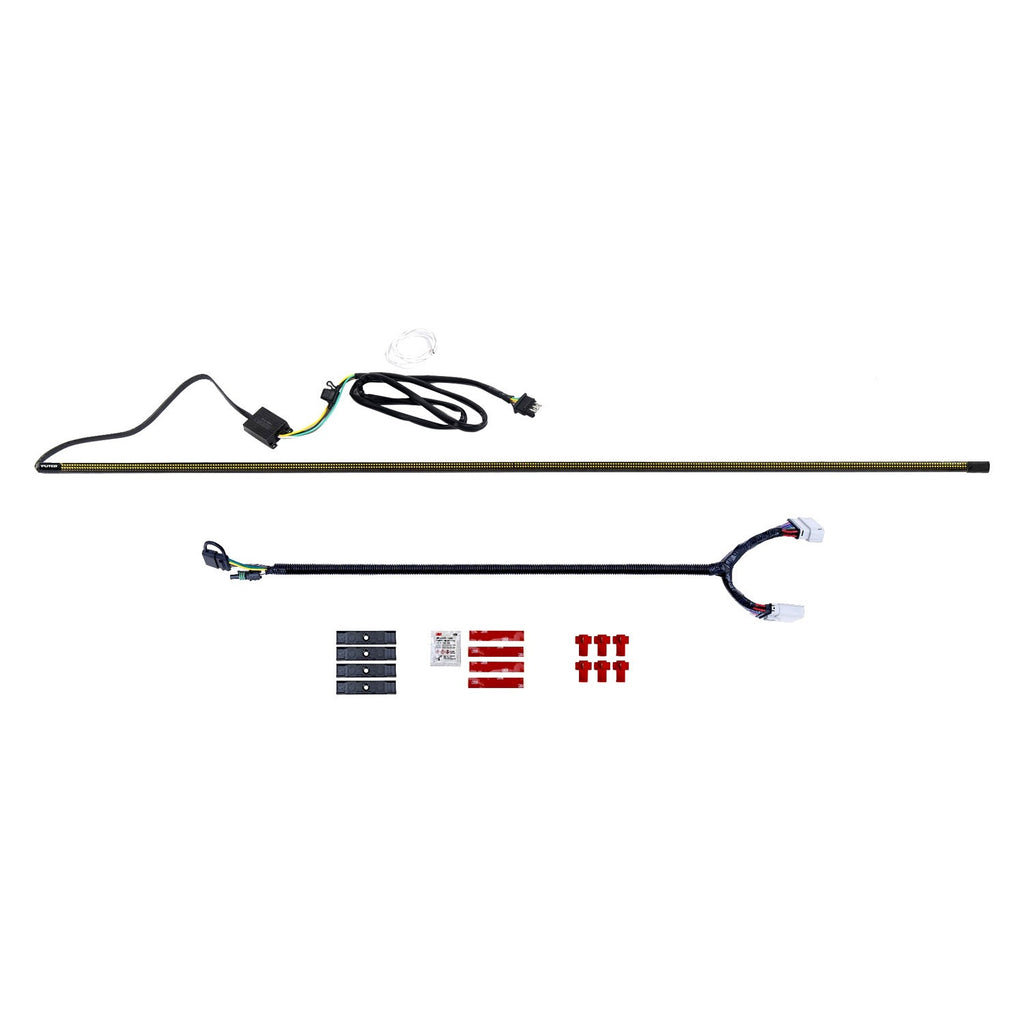

• Mounting Interface: Industrial-Strength Automotive Adhesive Tape Strips (Includes clips for mechanical reinforcement)

• Certifications: IP69K Waterproof Rated and DOT Compliant
