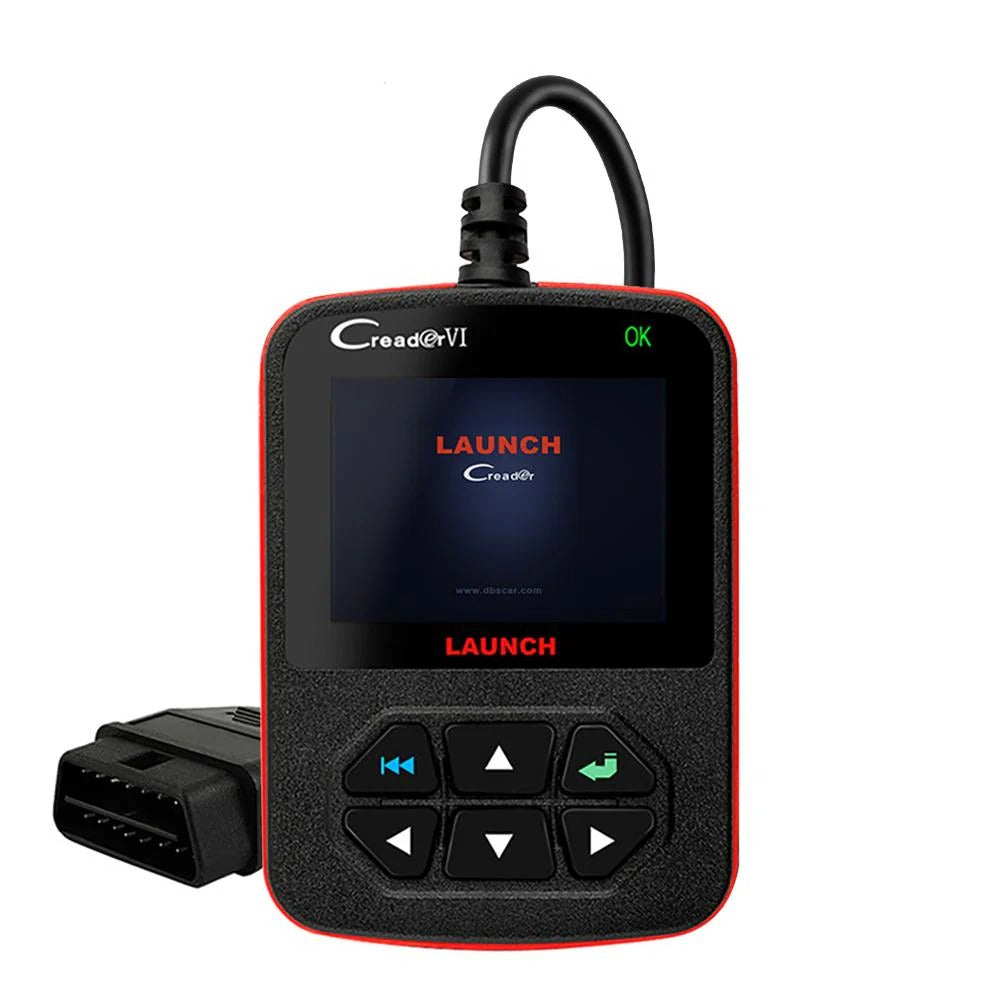

Launch Creader VI+ (Plus) Diagnostic Scanner

The Launch Creader VI+ (Plus) is a portable, entry-level diagnostic scan tool designed primarily for DIY enthusiasts and technicians in small auto repair shops. It serves as an updated platform over the original Creader VI, offering faster operation and expanded diagnostic capabilities.

Key Features

• Full OBDII/EOBD Support: The device communicates with all OBDII and EOBD protocols, allowing it to read and clear diagnostic trouble codes (DTCs), view live data streams, and perform I/M readiness tests.

• Enhanced Data Visualization: It features a 2.8-inch color LCD screen capable of displaying up to four live data streams (PIDs) in graphical format simultaneously, with a refresh rate of 2 frames per second.

• Data Recording & Playback: A standout feature is its ability to record up to 8 hours of diagnostic data, which can be stored and played back for review even when the tool is disconnected from the vehicle.

• Expanded Compatibility: In addition to full OBDII functions, the VI+ includes basic diagnostic capabilities for eight Japanese brands (JOBD).

• User-Friendly Design: It features an ergonomic button layout, built-in code definitions for easier troubleshooting, and LED indicators to show diagnostic status (Red/Yellow/Green).

• Updates: The device supports free updates via the internet.

Specifications

• Screen: 2.8" TFT, 320x240 LCD

• Input Voltage: 8–32V

• Operating Current: Typically <100mA at 12V

• Connectivity: Standard 16-pin OBD diagnostic connector

• Dimensions: 121mm x 82mm x 26mm

• Weight: <500g

Intended Use

The Creader VI+ is best suited for basic engine diagnostics, such as identifying the cause of a "Check Engine" light, monitoring emissions system status, and performing general system checks. It is widely recognized as a cost-effective, compact tool for quick, accurate fault identification on compliant petrol (2001+) and diesel (2004+) vehicles.
