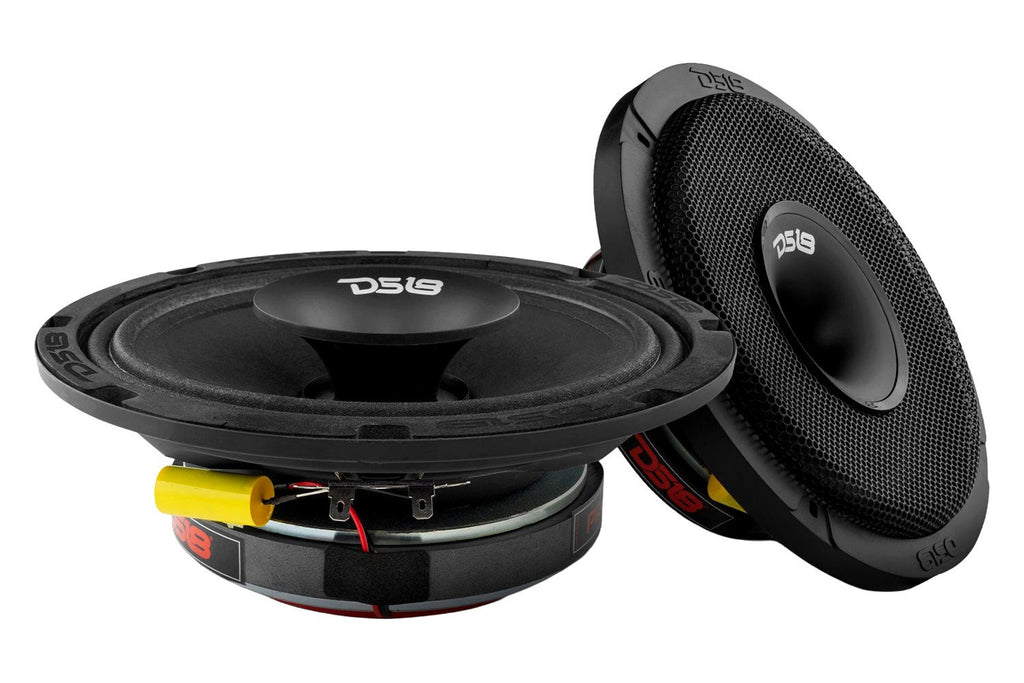

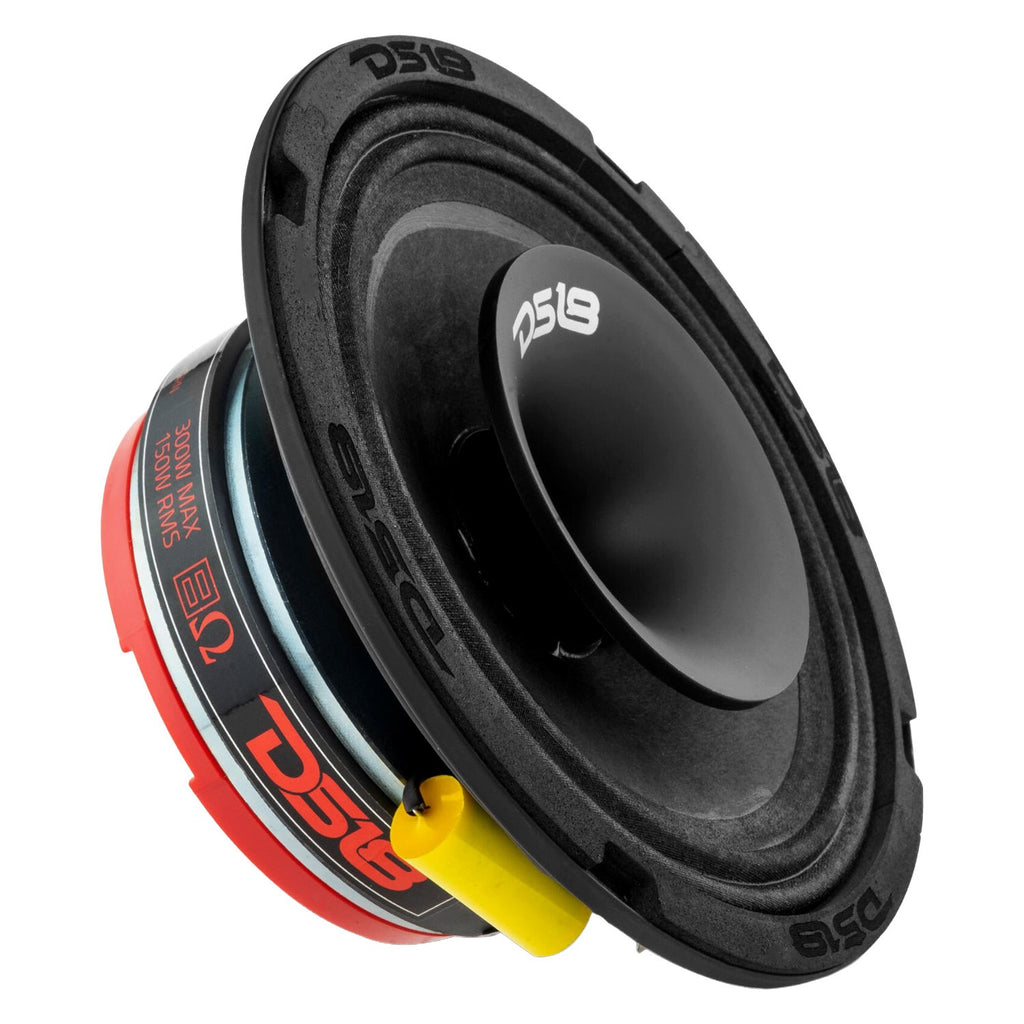

DS18 PRO-HY6.4MSL 6.5-Inch Hybrid Mid-range Loudspeaker

The DS18 PRO-HY6.4MSL is a high-performance, shallow-mount 6.5-inch hybrid loudspeaker designed to deliver exceptionally loud and clear mid-range sound in vehicles with limited mounting depth. By combining a powerful mid-range driver with an integrated high-efficiency driver/tweeter, this hybrid speaker produces a full range of mid-to-high frequencies from a single unit, eliminating the need for separate tweeter installations.

Built for custom car audio environments, the speaker utilizes a water-resistant paper cone and a lightweight neodymium magnet system to maximize volume while minimizing weight. Its slim, shallow-mount design allows it to fit into tight door panels and custom enclosures effortlessly, making it an ideal choice for high-volume audio systems.

Key Features:

• Hybrid Design: Combines a high-output mid-range speaker with an integrated high-frequency driver in a single chassis for streamlined installation.

• Shallow Mount Profile: Slim mounting depth allows for easy installation in tight spaces, door panels, and compact vehicle configurations.

• Neodymium Magnet: High-grade neodymium motor structure offers superior magnetic power and efficiency while keeping the speaker lightweight.

• Water-Resistant Cone: Engineered with a treated paper cone and cloth surround to protect against moisture exposure in automotive environments.

• Bullet Transducer: Built-in high-frequency driver acts as a sonic projector, sending crisp, clear high notes directly into the vehicle cabin.

Technical Specifications:

• Speaker Type: Hybrid Mid-Range Loudspeaker with Built-In Driver

• Nominal Diameter: 6.5 inches

• Max Power Handling: 400 Watts

• RMS Power Handling: 200 Watts

• Nominal Impedance: 4 Ohms

• Sensitivity: 94 dB

• Frequency Response: 120 Hz - 20 kHz

• Voice Coil Diameter: 1.5 inches

• Cone Material: Water-Resistant Paper

• Magnet Type: Neodymium

• Mounting Depth: 2.24 inches
