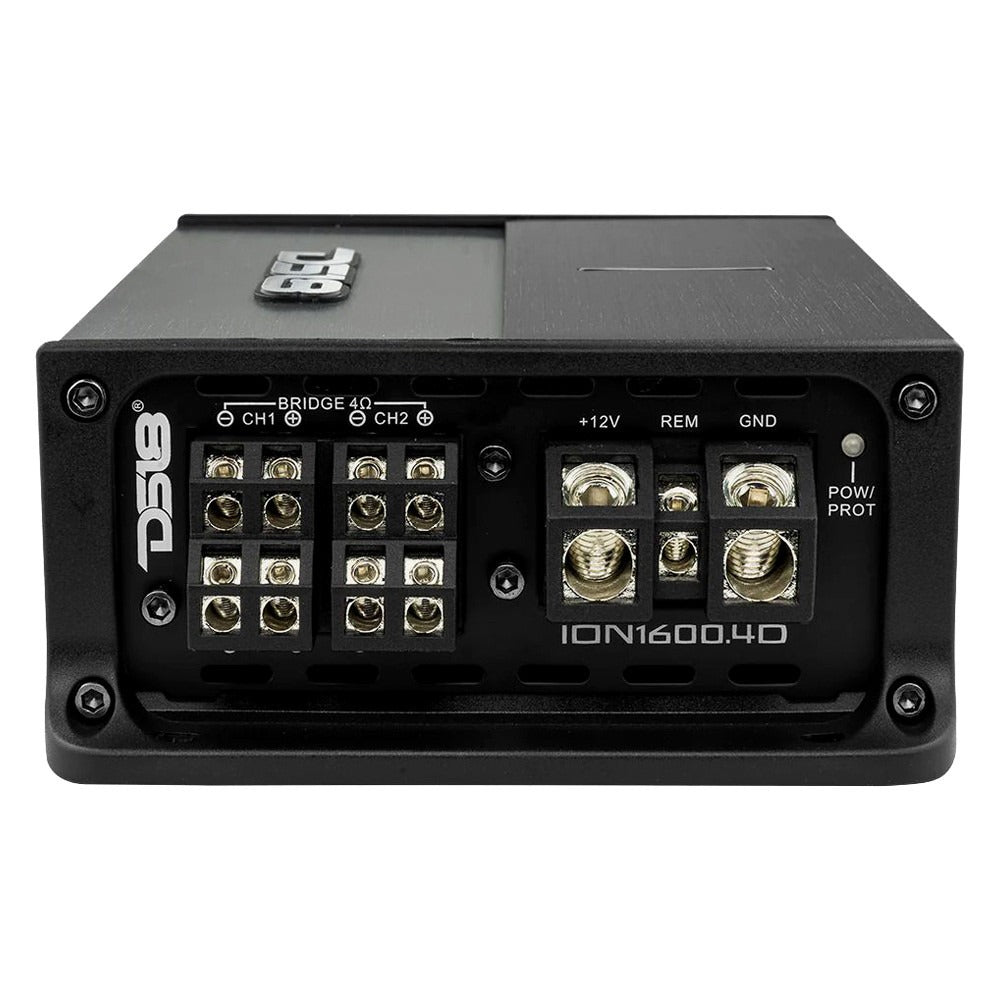

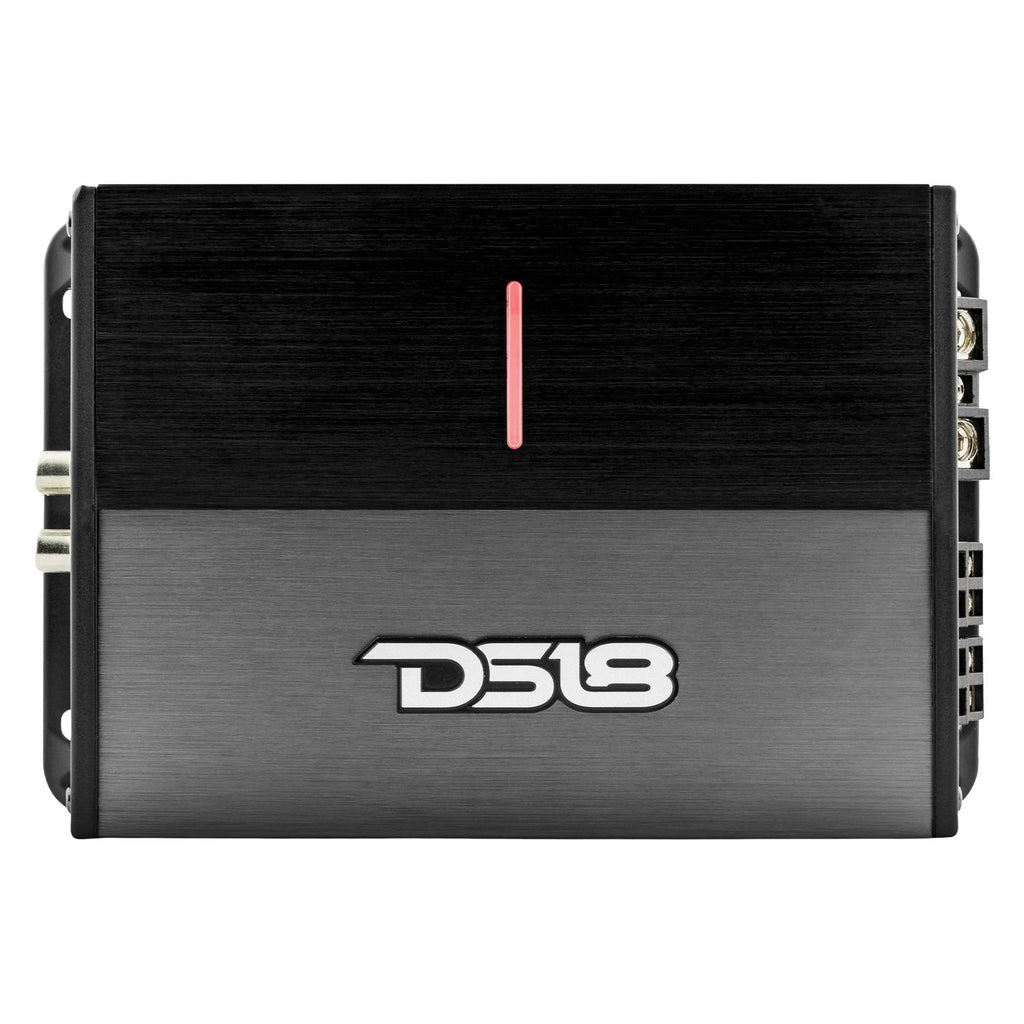

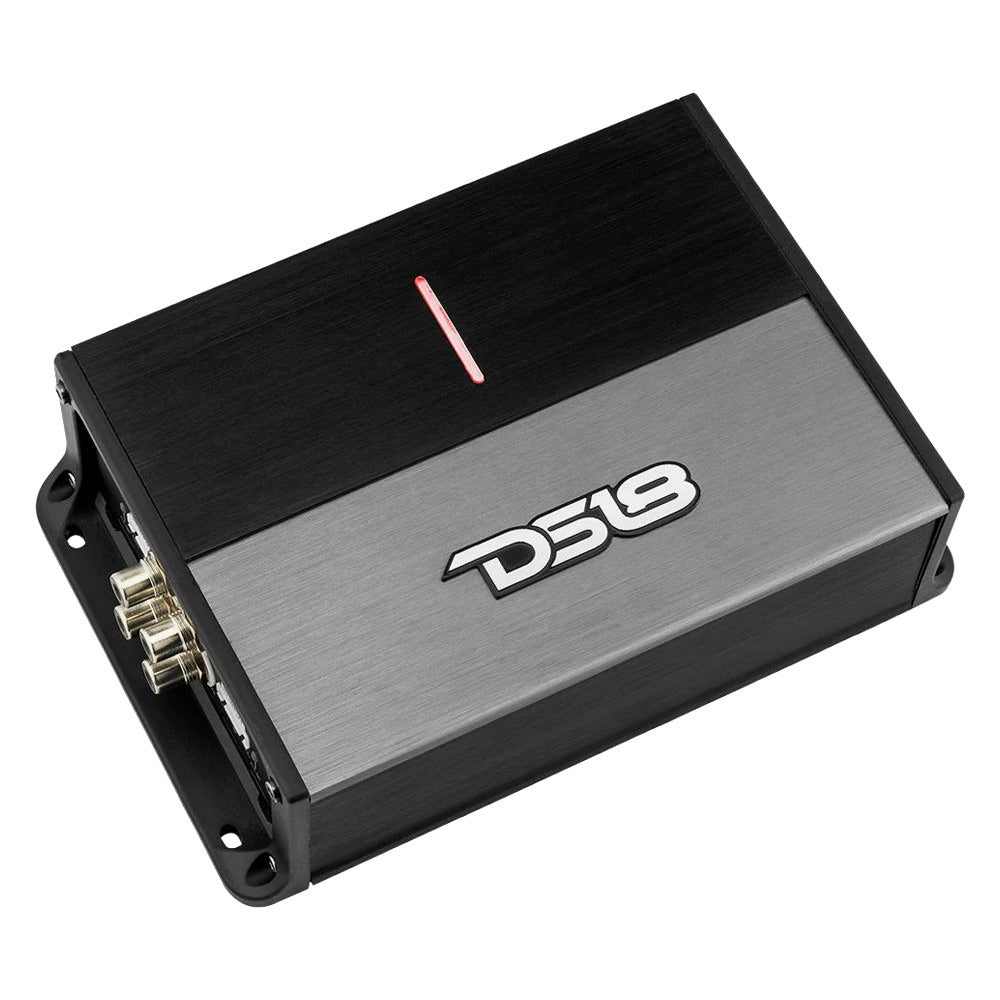

DS18 ION1600.4D Compact Full-range Class D aar Audio Amplifier

The DS18 ION1600.4D is a compact, high-efficiency 4-channel car audio amplifier designed to deliver powerful, clear sound while taking up minimal space. Utilizing digital Class D technology, this full-range micro-amplifier produces up to 1600 Watts of total power. Its small footprint allows for flexible installation options in tight spaces beneath seats or behind panels.

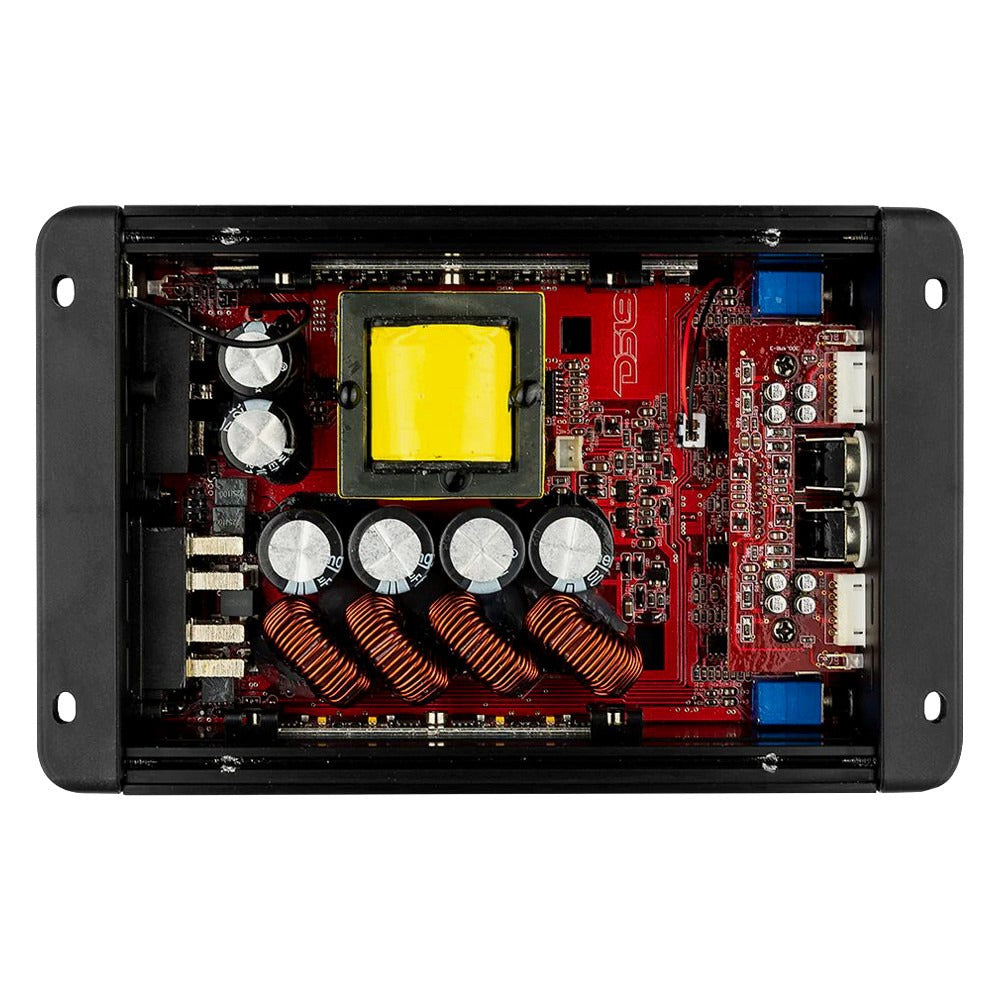

Engineered for durability, the amplifier features surface-mount technology and a conformal-coated circuit board that protects internal components against moisture and harsh vehicle vibrations. It includes variable high-pass and low-pass filters to customize speaker frequencies, alongside built-in safety features like thermal, short-circuit, and clipping protection indicators to ensure reliable performance.

Key Features:

• Micro Digital Design: Ultra-compact chassis fits into almost any vehicle layout without sacrificing cabin space.

• 4-Channel Full Range: Capable of powering four separate speakers or being bridged to run two subwoofers.

• Weather and Vibration Resistant: Conformal-coated internal electronics protect the amplifier against moisture corrosion and rough road conditions.

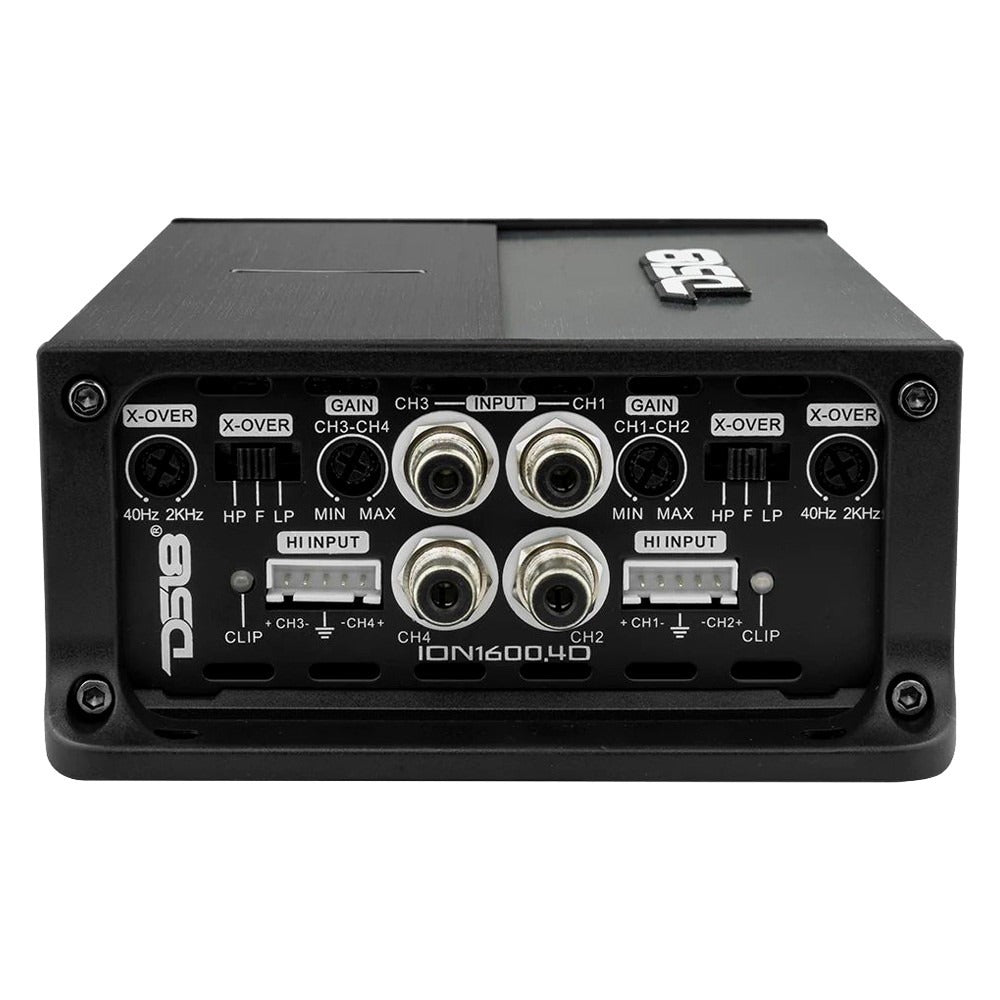

• Universal Connection: Equipped with both high-level speaker inputs and standard RCA inputs to connect easily to factory or aftermarket radios.

• LED Status Indicators: Dedicated lights visually monitor power, protection modes, and audio clipping.

Technical Specifications:

• Amplifier Class: Digital Class D

• Number of Channels: 4 Channels

• RMS Power Output at 4-Ohms: 240 Watts x 4

• RMS Power Output at 2-Ohms: 400 Watts x 4

• RMS Power Output Bridged (4-Ohms): 800 Watts x 2

• Frequency Response: 10 Hz - 20 kHz

• Signal-to-Noise Ratio: >95 dB

• Crossover Range: Variable 40 Hz - 2 kHz (HPF / LPF / Full selectable)

• Power Input Terminal Size: 4 AWG

• Dimensions: 7.32" L x 4.72" W x 2.05" H
