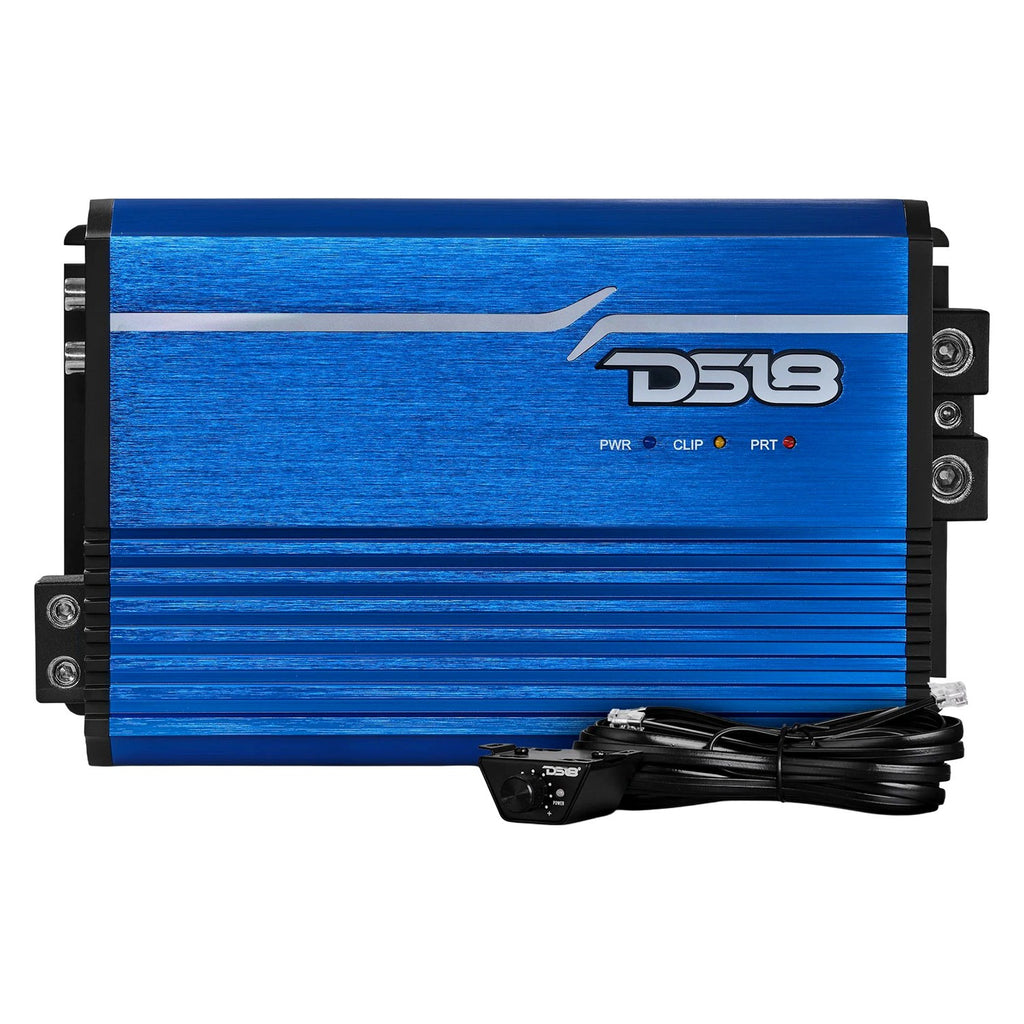

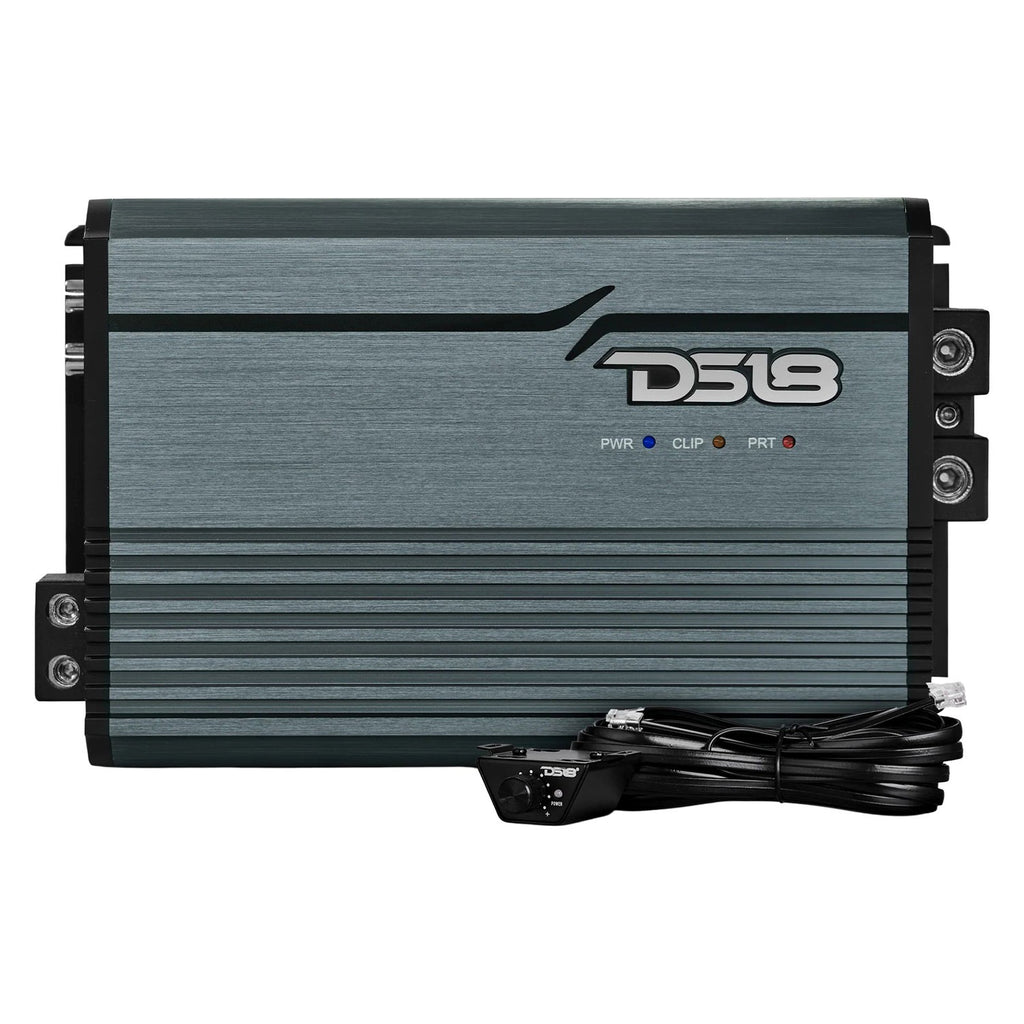

DS18 FRP-2.5K/TI 1-Channel, Compact, Full-range Class-D Amplifier
DS18 FRP-2.5K/TI 1-Channel, Compact, Full-range Class-D Amplifier
The DS18 FRP-2.5K/TI is a high-power, compact 1-channel monoblock amplifier designed to deliver up to 2500 Watts of RMS power. Engineered with highly efficient digital Class D technology, this full-range amplifier can be used to power heavy subwoofers, mid-range arrays, or high-frequency drivers depending on your layout configuration. Its compact footprint and titanium finish allow for seamless installation in restricted vehicle spaces without losing performance value.
Built to survive harsh automotive environments, the amplifier features a multi-layer protective PCB coating that resists moisture corrosion and securely bonded internal components that guard against rough road vibrations. It includes a fixed band-pass crossover filter network for accurate frequency control, premium Tiffany RCA terminals for optimal signal transfer, and comprehensive safety circuitry to safeguard your vehicle's entire audio setup.
Key Features:
-
Full-Range Operation: High-power 1-channel design optimized to drive bass, mid-range speakers, or highs effortlessly.
-
High Power, Small Footprint: Delivers massive RMS power outputs while maintaining an ultra-compact chassis for flexible placement.
-
Enhanced Component Protection: Conformal-coated internal electronics protect the amplifier from moisture degradation and heavy vibrations.
-
Precision Sound Tuning: Equipped with fixed band-pass controls, variable crossover adjustments, and a 0 to 12 dB bass boost to customize speaker response.
-
Real-Time Performance Monitoring: Includes a remote level control knob equipped with integrated power and clip indicators to protect against signal distortion.
Technical Specifications:
-
Amplifier Class: Digital Class D
-
Number of Channels: 1 Channel
-
RMS Power Output at 1-Ohm: 2500 Watts
-
RMS Power Output at 2-Ohms: 1300 Watts
-
RMS Power Output at 4-Ohms: 700 Watts
-
Max Power Output (Burst): 2800 Watts
-
Frequency Response: 10 Hz - 20 kHz
-
Signal-to-Noise Ratio: 83 dB
-
Crossover Filter Range: HPF: 10 Hz - 2 kHz / LPF: 40 Hz - 20 kHz
-
Power Input Terminal Size: 0 AWG
-
Dimensions: 8.85" L x 5.50" W x 2.36" H
-
Included Accessories: Remote level control knob with clipping indicator cable, mounting hardware
