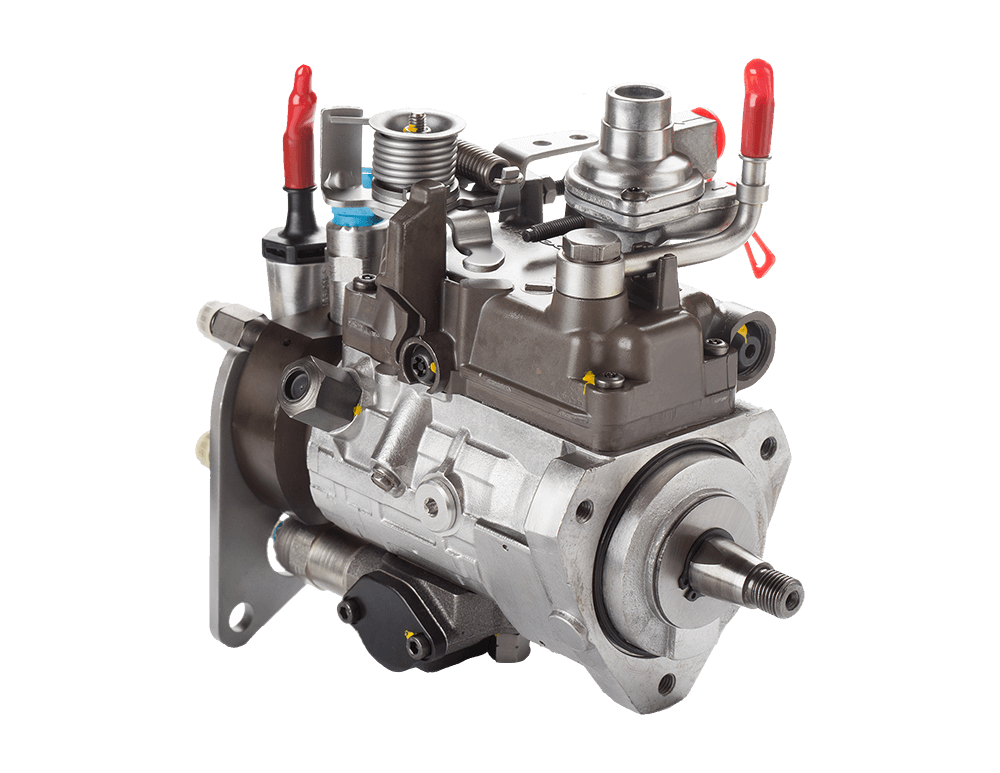

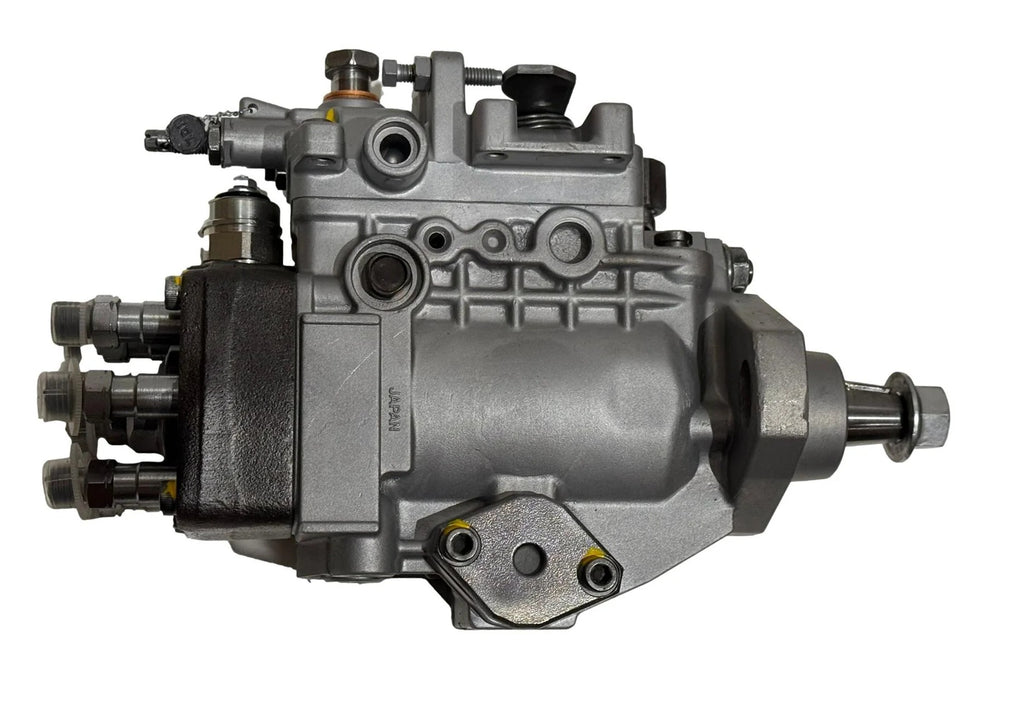

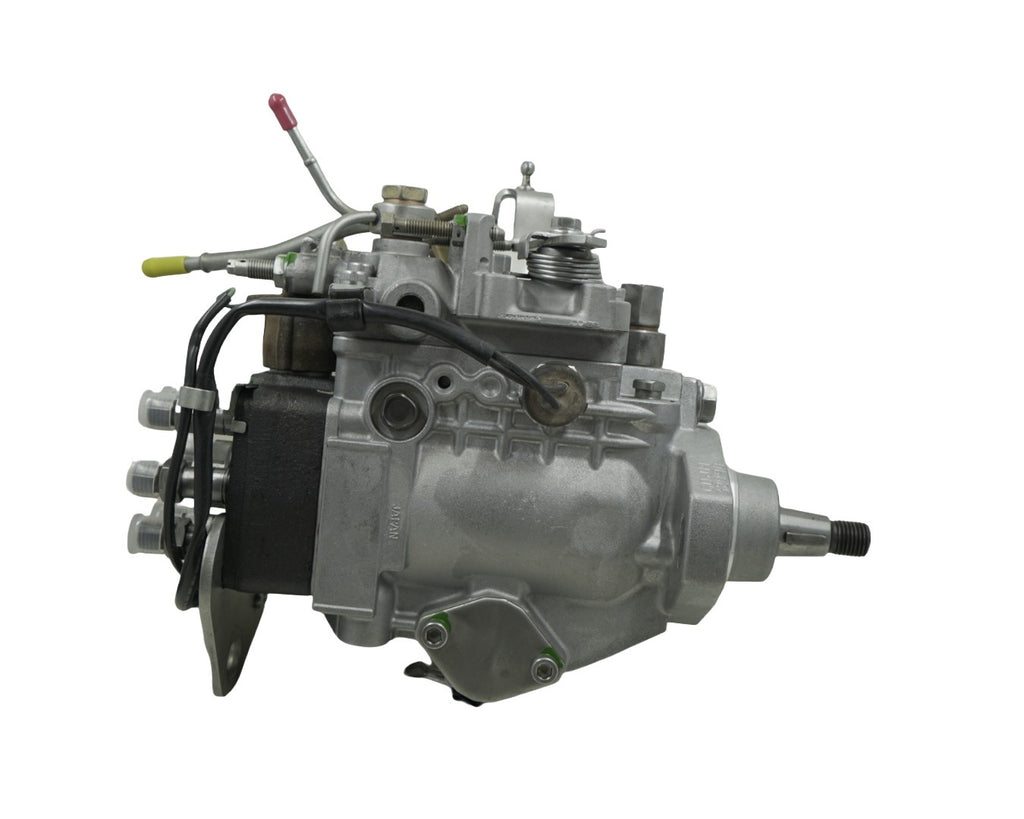

Denso Mechanical Rotary Diesel Injection Pump

Denso Mechanical Rotary Diesel Injection Pump

The Denso rotary-style mechanical injection pump is a high-precision, distributor-type fuel system widely used in various compact and medium-duty diesel engines. Unlike the large, inline P-pumps found in heavy-duty applications, the rotary pump uses a single high-pressure pumping element and a distributor rotor to meter and pressurize fuel to each cylinder in the firing order.

Technical Characteristics

• Rotary Design: All high-pressure pumping is handled by a single plunger that simultaneously rotates and reciprocates, significantly reducing the size and weight of the assembly compared to inline pumps.

• Mechanical Governing: The pump is typically governed by an internal mechanical centrifugal weight assembly, which regulates fuel delivery based on engine RPM, and a vacuum or mechanical governor to control idle and maximum speed.

• Compact Integration: Due to its streamlined form factor, this pump is commonly found in older light-duty trucks, passenger vehicles (Toyota/Mitsubishi/Isuzu), and agricultural equipment where space and weight are at a premium.

• Internal Timing: Features an automatic timer mechanism that adjusts the injection start timing based on internal transfer pressure, ensuring efficient combustion across the engine’s operating range.
