AEM Electronics CD-5 Carbon Digital Dash Display

AEM Electronics CD-5 Carbon Digital Dash Display

The AEM Electronics CD-5 Carbon Digital Dash Display is a motorsport-grade, high-visibility digital instrument panel engineered to replace traditional gauges with a single, ultra-lightweight data hub. Enclosed in a rugged, carbon-fiber reinforced composite housing, this 5-inch display is built to withstand high-vibration racing environments while saving critical dashboard weight. It provides racers with an instantaneous, clear view of vehicle vitals under any driving condition.

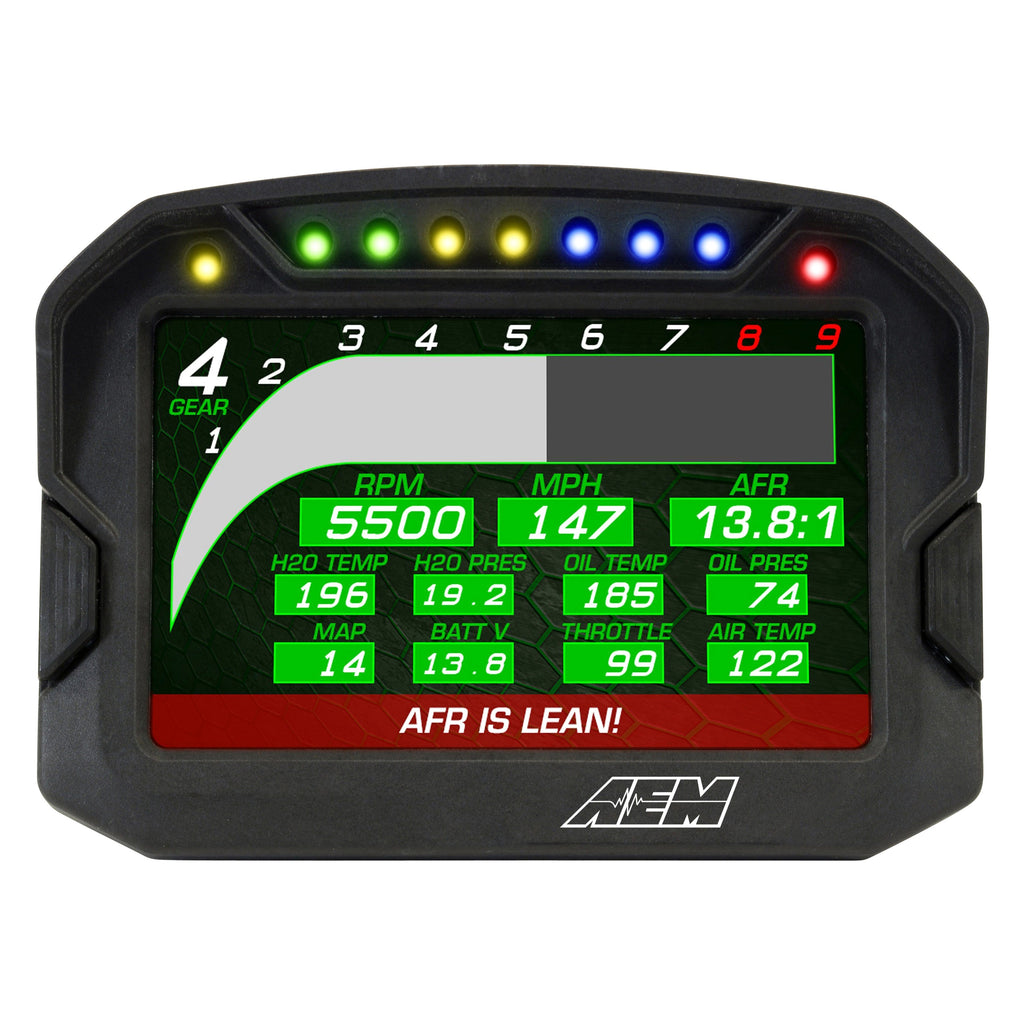

The CD-5 features a full-color, daylight-readable screen with an integrated anti-glare filter, ensuring the display remains perfectly visible even in direct, harsh sunlight. Equipped with a progressive 7-LED shift light strip across the top and two fully programmable multi-color alert LEDs on the sides, it delivers immediate driver feedback. The dash seamlessly communicates via CAN-bus with over 250 aftermarket ECU and logging devices, as well as factory OBDII networks, allowing for an effortless, plug-and-play installation across a massive range of vehicles.

Key Features:

• Carbon Fiber Composite Housing: Constructed from an ultra-lightweight, automotive-grade carbon fiber compound to handle intense structural stress and track vibrations.

• Daylight-Readable LCD Screen: Vibrant 5-inch diagonal color display featuring a wide viewing angle and a specialized anti-glare coating for absolute clarity in open-air cabins or direct sunlight.

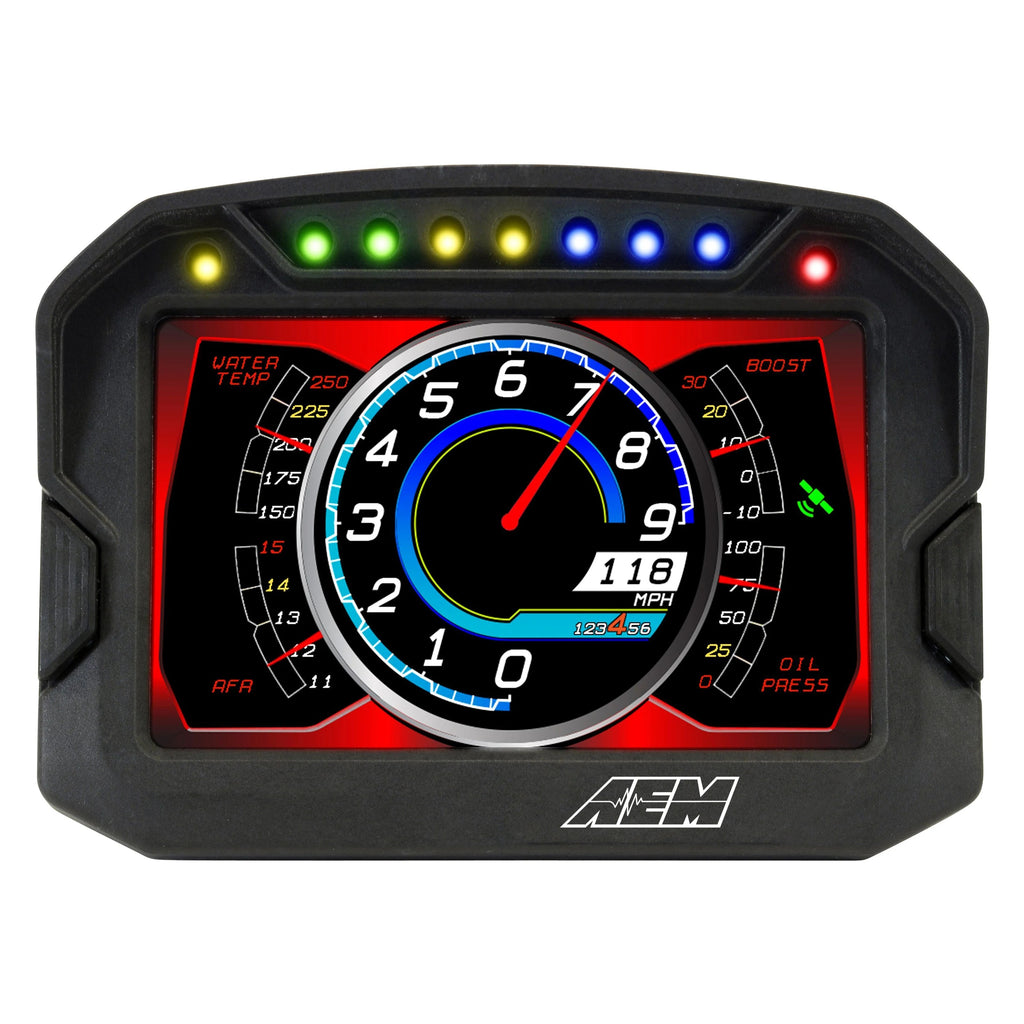

• Fully Customizable Interface: Supports multiple user-programmable page layouts with tailored graphics, warning thresholds, and text sizes using AEM’s free setup software.

• Smart CAN-Bus Connectivity: Features dual independent CAN-bus channels to simultaneously read and display data from stock vehicle OBDII systems, aftermarket standalone ECUs, and external sensor modules.

• Multi-Stage Progressive LEDs: Built-in multi-color 7-LED shift light strip paired with 2 side alert LEDs that can be customized to flash instantly during critical faults like low oil pressure or high temperatures.

Technical Specifications:

• Product Type: Non-Logging Digital Instrument Dash Display (CD-5 Series)

• Display Screen Size: 5-inch Diagonal (800 x 480 Resolution)

• Chassis Material: Molded Carbon Fiber Reinforced Polymer

• Ingress Protection: IP66 Water and Dust Resistant (Suitable for open-cockpit cars, marine vessels, and UTVs)

• Shift Light Interface: 7-LED Progressive Array (Fully Programmable Colors)

• Warning Indicators: 2x Multi-Color Side Alert LEDs

• Communication Channels: 2x Channels of CAN-bus (AEMnet, OBDII, and custom templates)

• Voltage Compatibility: 7-Volt to 18-Volt DC Systems

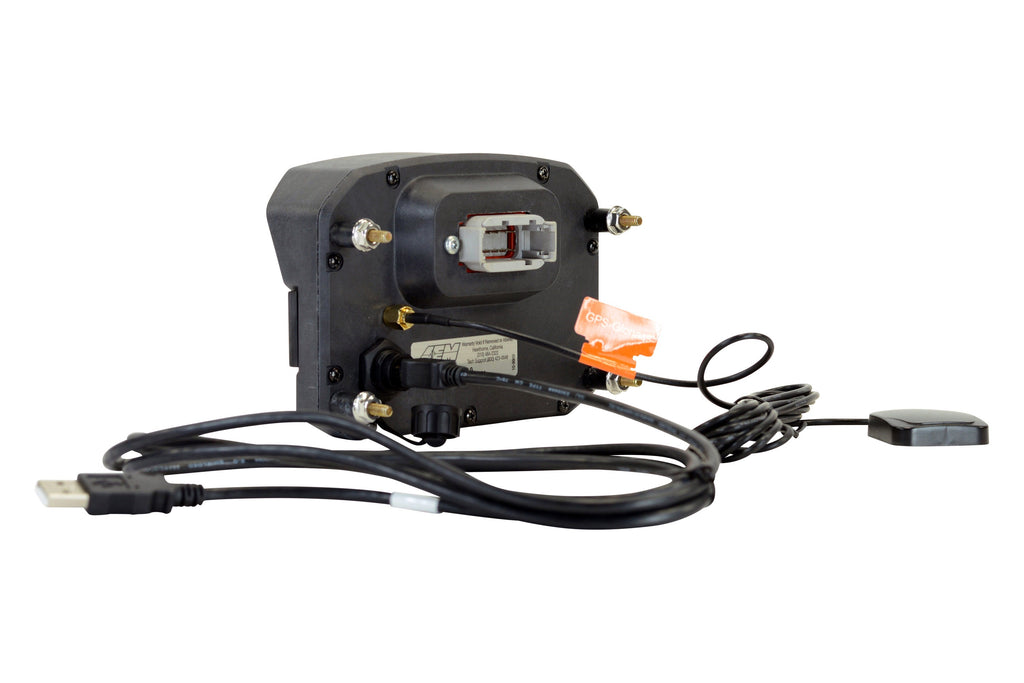

• Included Accessories: Power/CAN-bus main wiring harness, flush-mount hardware kit, and USB programming cable
