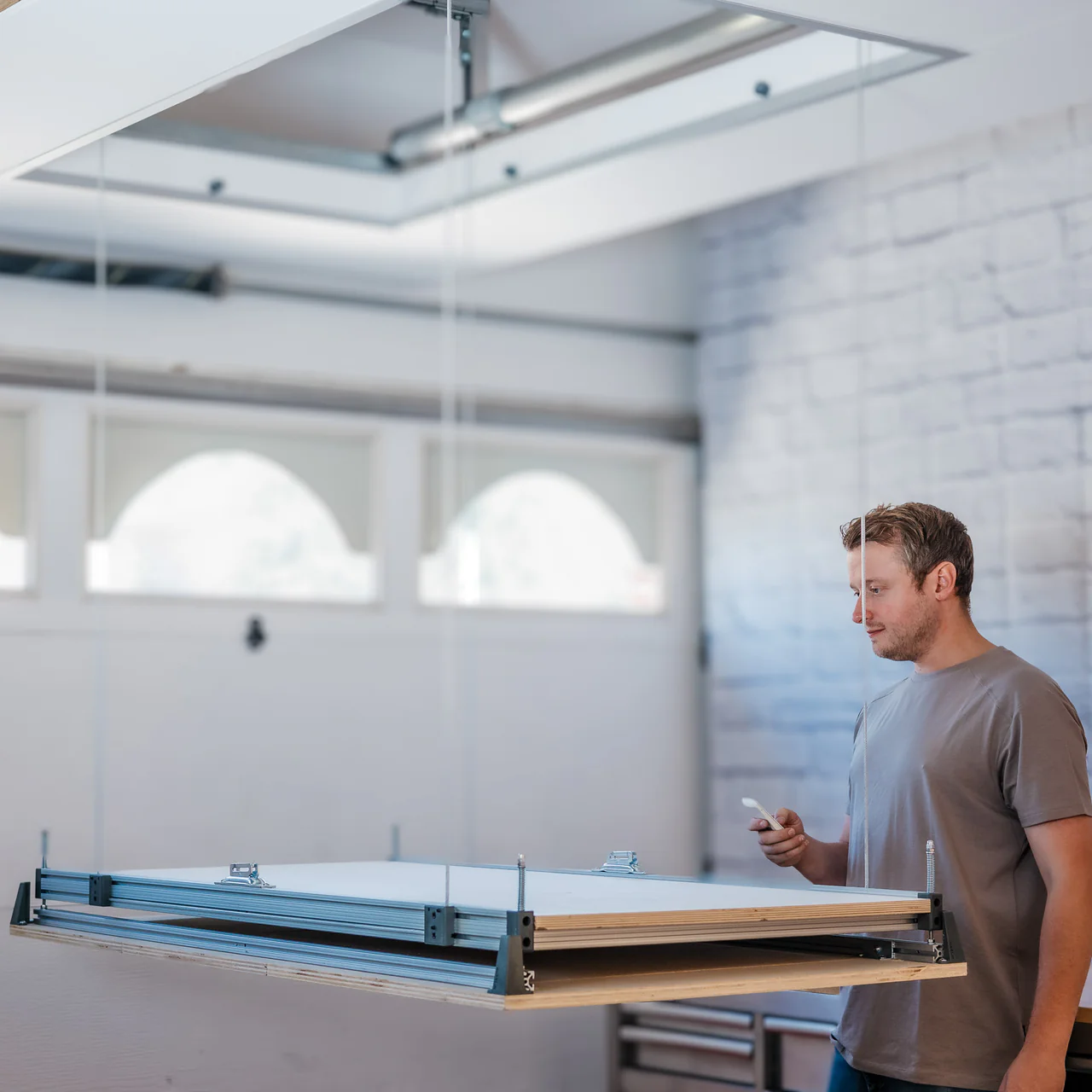

The Remote-Controlled Attic Lift by Auxx Lift is a convenient way to access your attic with the push of a button. With a remote control, you can easily lift and lower items up to 200 lbs, reducing strain and the risk of injury. Made with durable materials, it is a reliable and efficient addition to any home. Best Value on the market, Load up to 400 Lbs! Easily store items in your attic at the push of a button
Key Features:
- EASY INSTALL! Includes hardware for a sealing cover
- Small footprint in the attic

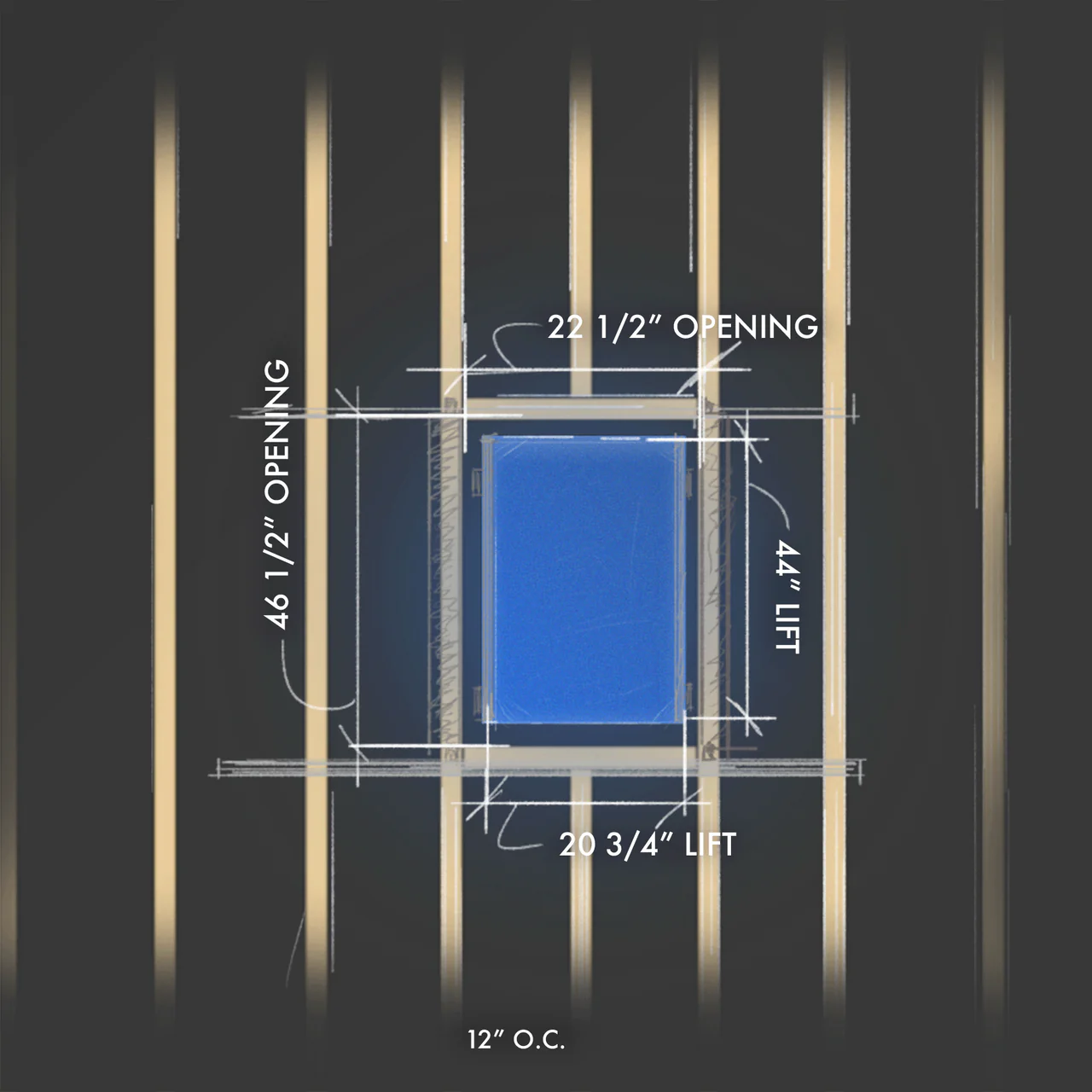

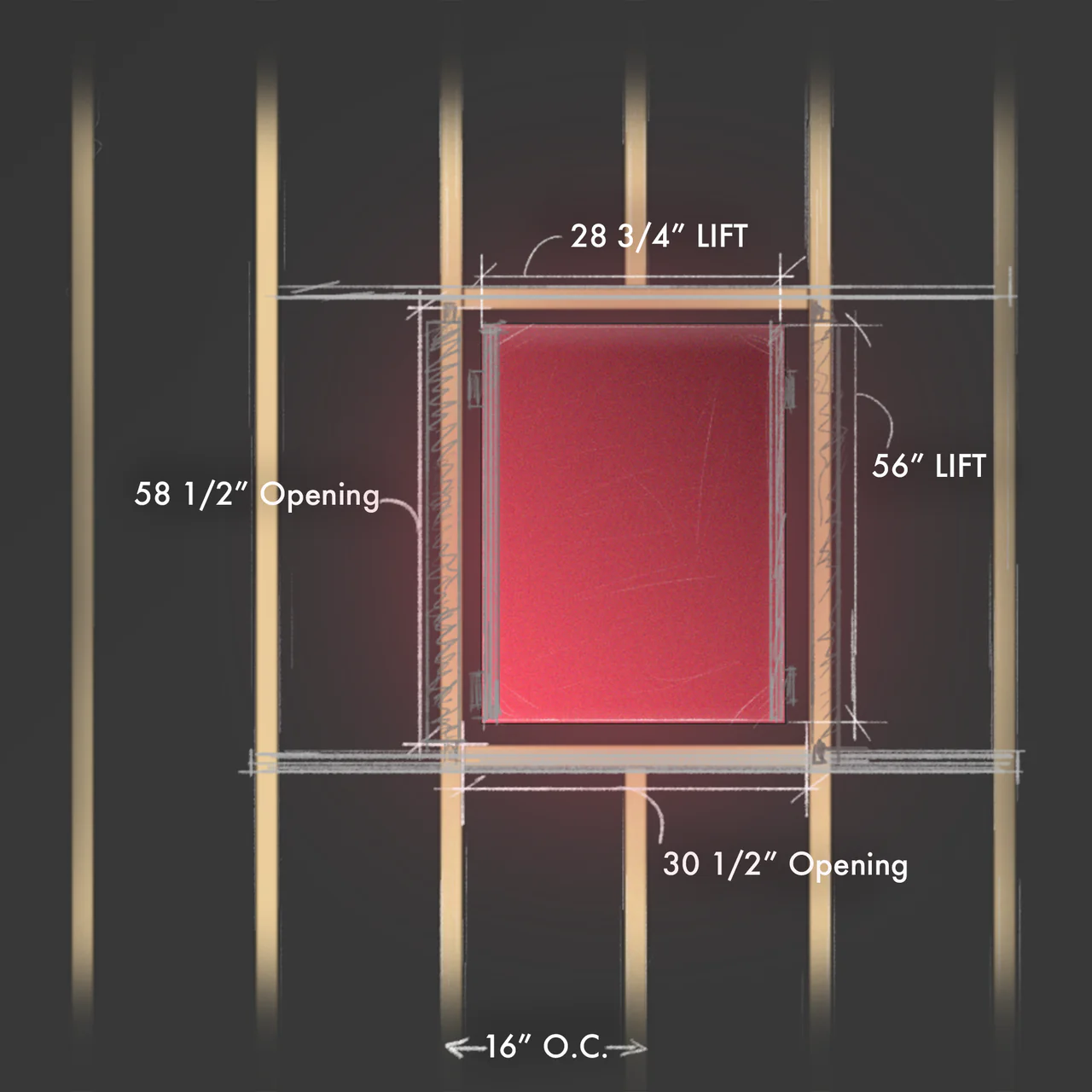

- Fully adjustable to accommodate all joist sizes
- Industry-leading safety & strength
Specifications:
- Model: Attic-Lift 1400
- Lifting Capacity: Up to 400 lbs
- Max. Travel Distance: 13′-6” (18′-0″ w/ Extension)
- Speed: Avg 30 sec for 9′ ceilings
Ceiling Support:
- Type:(2) 1 5/8″ x 60″ strut channel
- Fasteners:(8) 5/16″ x 4″ SPAX© Lag Bolts
- Cable:1/8” Vinyl-coated Steel 7×19
- Cable Strength:2,000 lbs
Operating Requirements:
- Switch Voltage:110V / 120V
- Transmitter:433.92 MHz
- Electrical Cord: 10 FT / 16 gauge / NEMA 5-15
- Min. circuit size: 15 amp
Platform Specs:
- Frame: T-slotted framing rail
- Material: 6105-T5 aluminum alloy
- Decking: 3/4 in thick Oak Plywood (5-ply)
E-Beam Lifting Frame:
- Height:5 inches
- Length:5 ft
- Material: Galvanized Steel
- Slot Spacing: 2 in on center
Motors:
- Type: IP44 (T-Motor)
- Rated Power:235 W
- Rated Current:2.2 A
- Voltage / Phase: 100- 120V AC / Single
- Tube Diameter:70mm (2-3/4 in)
- Motor speed:13 rpm
- Duty Cycle @ Max. Capacity 3 min on, 15 min off
