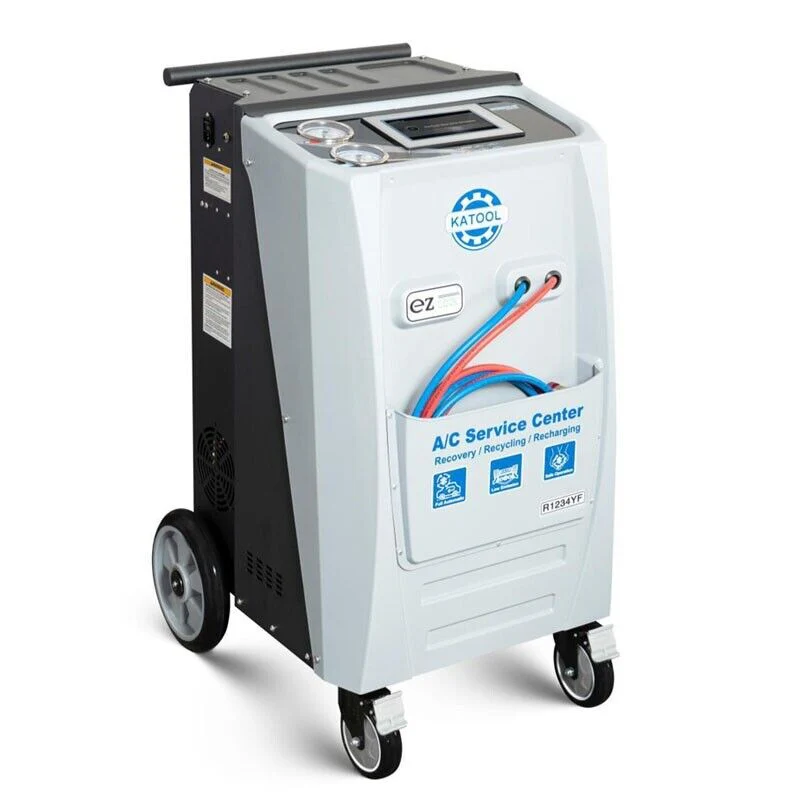

Efficiently recover and recharge your AC units with the Fully Automatic Recovery Recycle And Recharge DUAL AC2100 Machine by KaTool. This machine’s dual capabilities make it the ideal choice for automotive and residential use. With its fully automatic features, you can save time and money and reap the benefits of a reliable and advanced AC unit.
Specifications:
-
Applicable Refrigerant Type
R1234YF
Voltage
110V AC, 60 Hz
Recovery Performance(70-75°F)
Min.95% in less than 30min
Charge Performance(70-75°F)
±0.5 oz (15 g)
Operate Temperature Range
41-122°F (5-50°C)
Max Pressure
18 bar
Filter-Drier Capacity
175 lbs (80kg),spin-on type
Gas Loadcell Accuracy
0.04oz/66lbs(1g/30kg)
Oil Loadcell Accuracy
0.04oz/66lbs(1g/30kg)
Vacuum Transducer Accuracy
1 mBar/1000mBar
Recovering Speed
39.7 lbs/h (18kg/h)
Charge Speed
2.2 lbs/min(1kg/min)
Hose Length
9.8’(3m)SAE J2788
Compressor
1/3hp(246W).themal protected,oiled,hermetically sealed
Vacuum Pump
3.6 CFM(120L/min),dual stage
Display
7”touch HQ
Tank
0.5 cubic feet(14.3L)
Oil Bottle
15 cubic inch(250mL)
Additional information
-
Printer
YES
Heating Belt
optional
SD Database
YES
Vacuum Test
YES
Fan&Condenser
YES
Packing Size
22”x 28”x41”(550x700x1050mm)
Gross Weight
240lb(110kg)
