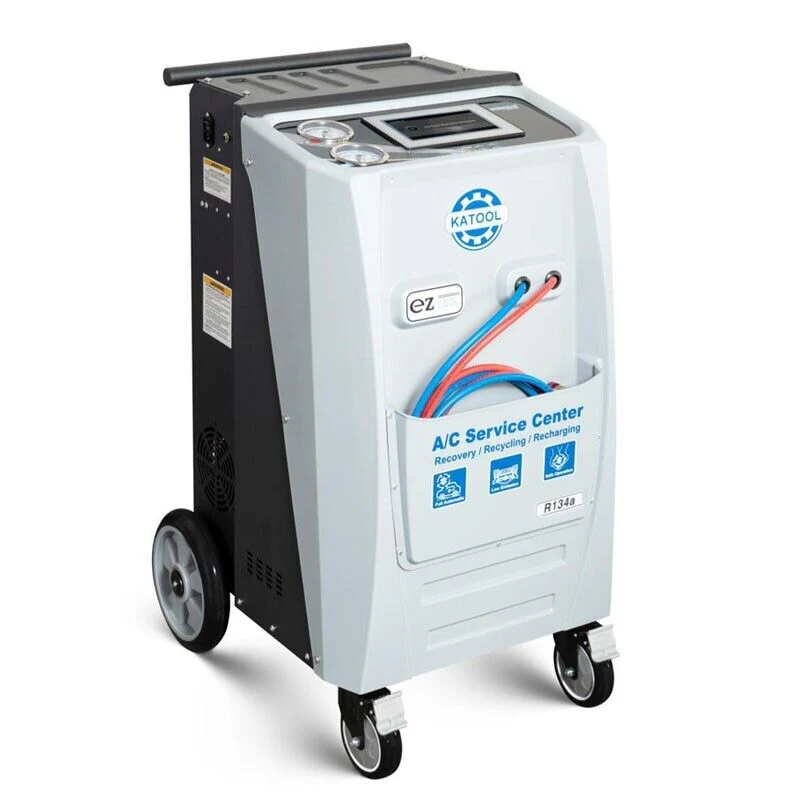

Efficiently recover, recycle, and recharge with the Fully Automatic Recovery Recycle And Recharge DUAL AC1800 Machine By KaTool. This advanced machine simplifies automotive service, saving time and increasing productivity. Its dual AC1800 capability can handle a wider range of vehicles, ensuring reliable performance and satisfied customers.
Specifications:
|
Applicable Refrigerant Type |
R134a |
|
Voltage |
110V AC, 60 Hz |
|
Recovery Performance(70-75°F) |
Min.95% in less than 30min |
|
Charge Performance(70-75°F) |
±0.5 oz (15 g) |
|
Operate Temperature Range |
41-122°F (5-50°C) |
|
Max Pressure |
18 bar |
|
Filter-Drier Capacity |
175 lbs (80kg),spin-on type |
|
Gas Loadcell Accuracy |
0.04oz/66lbs(1g/30kg) |
|
Oil Loadcell Accuracy |
0.04oz/66lbs(1g/30kg) |
|
Vacuum Transducer Accuracy |
1 mBar/1000mBar |
|
Recovering Speed |
39.7 lbs/h (18kg/h) |
|
Charge Speed |
2.2 lbs/min(1kg/min) |
|
Hose Length |
9.8’(3m)SAE J2788 |
|
Compressor |
1/3hp(246W).themal protected,oiled, hermetically sealed |
|
Vacuum Pump |
3.6 CFM(120L/min),dual-stage |
|
Display |
7” touch HQ |
|
Tank |
0.5 cubic feet(14.3L) |
|
Oil Bottle |
15 cubic inch(250mL) |
Additional information:
|
Printer |
YES |
|
Heating Belt |
optional |
|
SD Database |
YES |
|
Vacuum Test |
YES |
|
Fan&Condenser |
YES |
|
Packing Size |
22”x 28”x41”(550x700x1050mm) |
|
Gross Weight |
240lb(110kg) |
