Super Handy 25 Ton Log Splitter – Free Shipping!

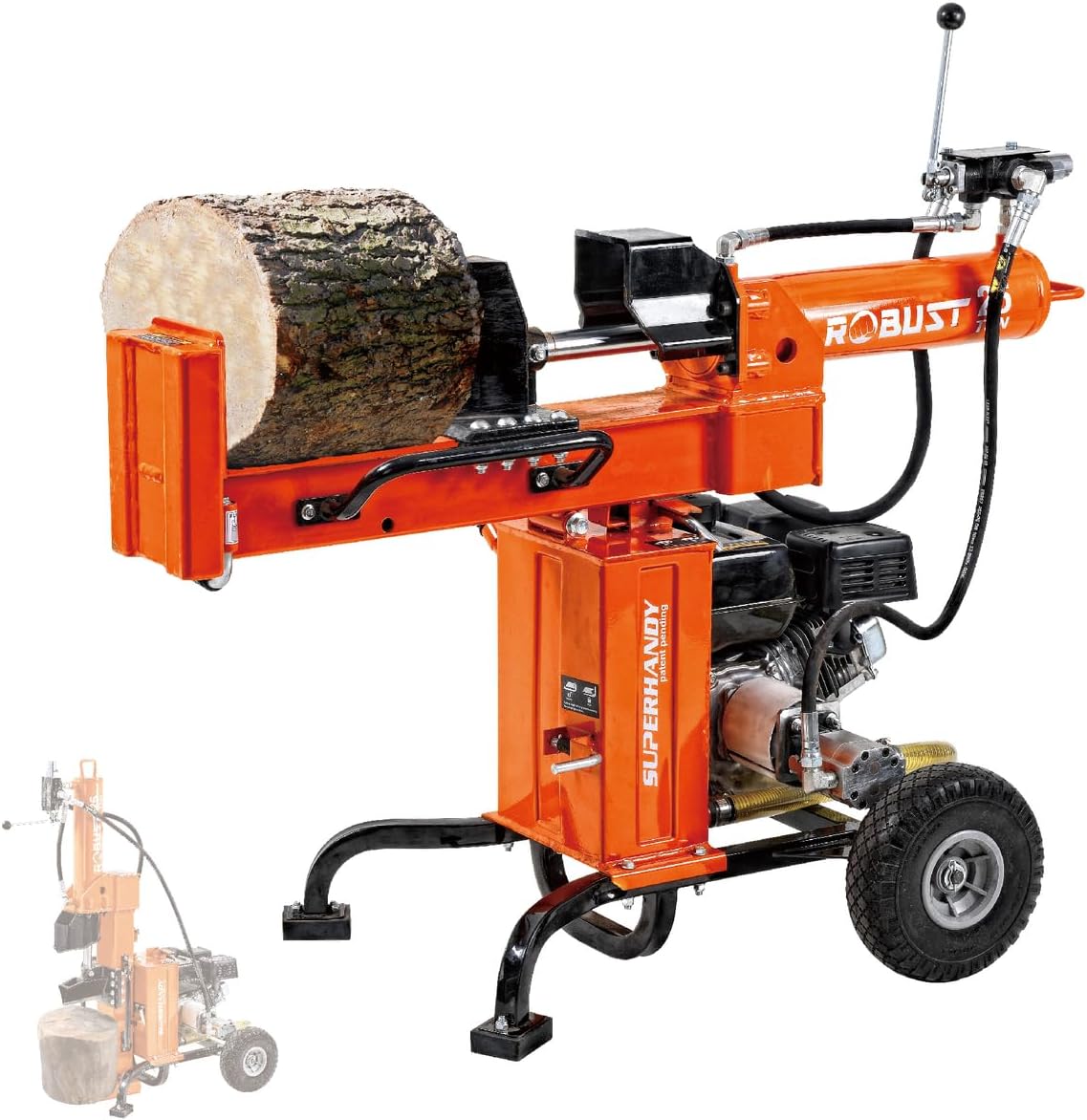

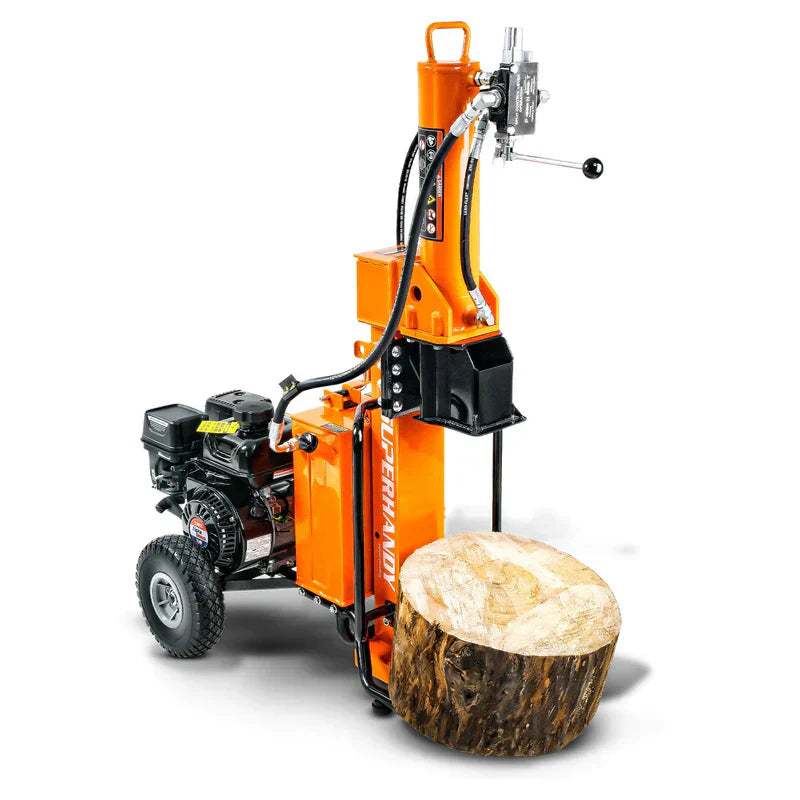

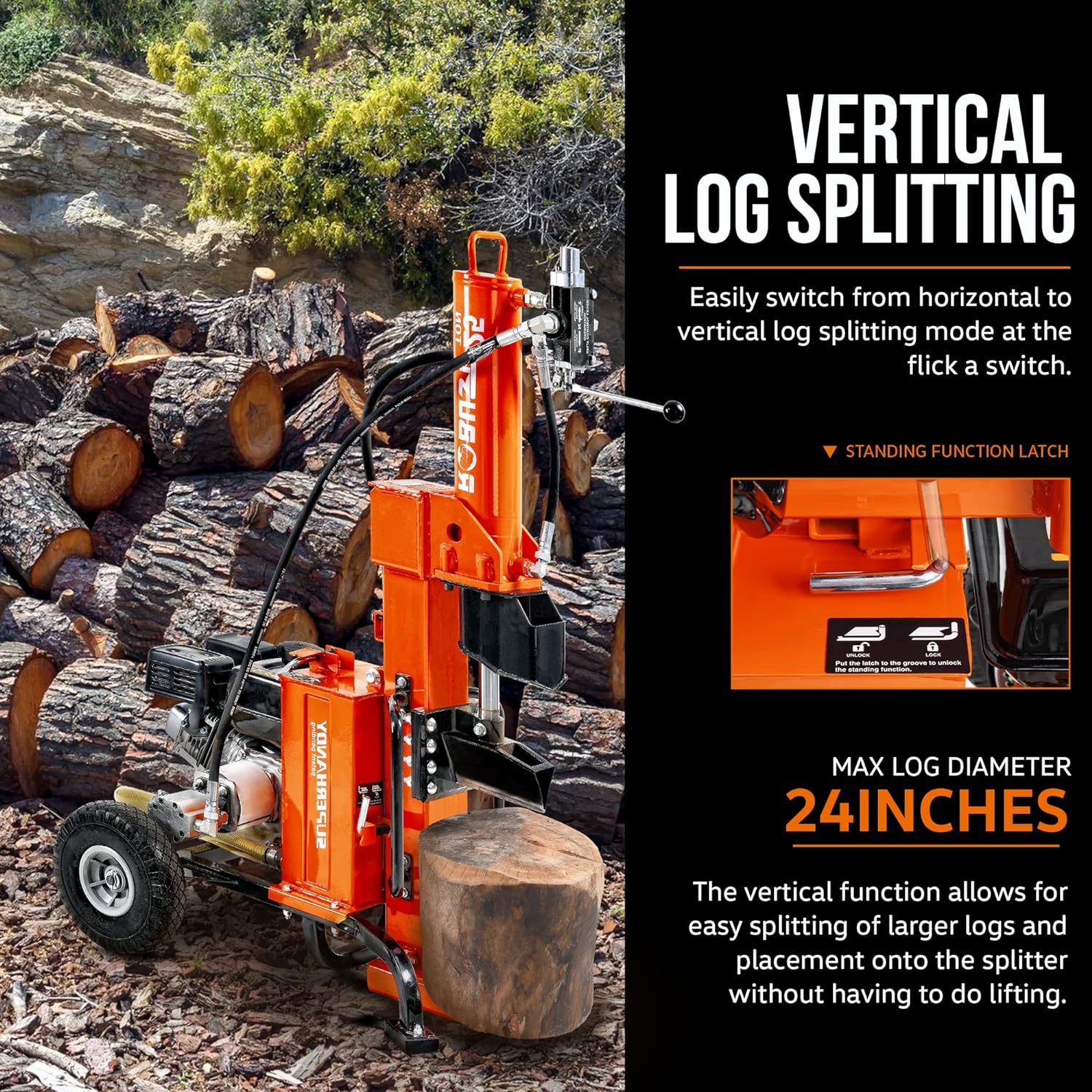

The SuperHandy GUO096 log splitter splits both in either a horizontal or vertical position. Tear through logs up to 20 inches in length and 16 inches in diameter! Get it done twice as fast with our Rapid Auto Return push-rod.
- Powerful Alpha Works’ 7HP Gas Engine provides a smooth linear power curve to help avoid clunky performance during operation
- A constant splitting force allows the wedge to smoothly slice through your woodpile with confidence
- 25-Ton rated hydraulic system powered by a reliable Alpha Works 7HP gas engine

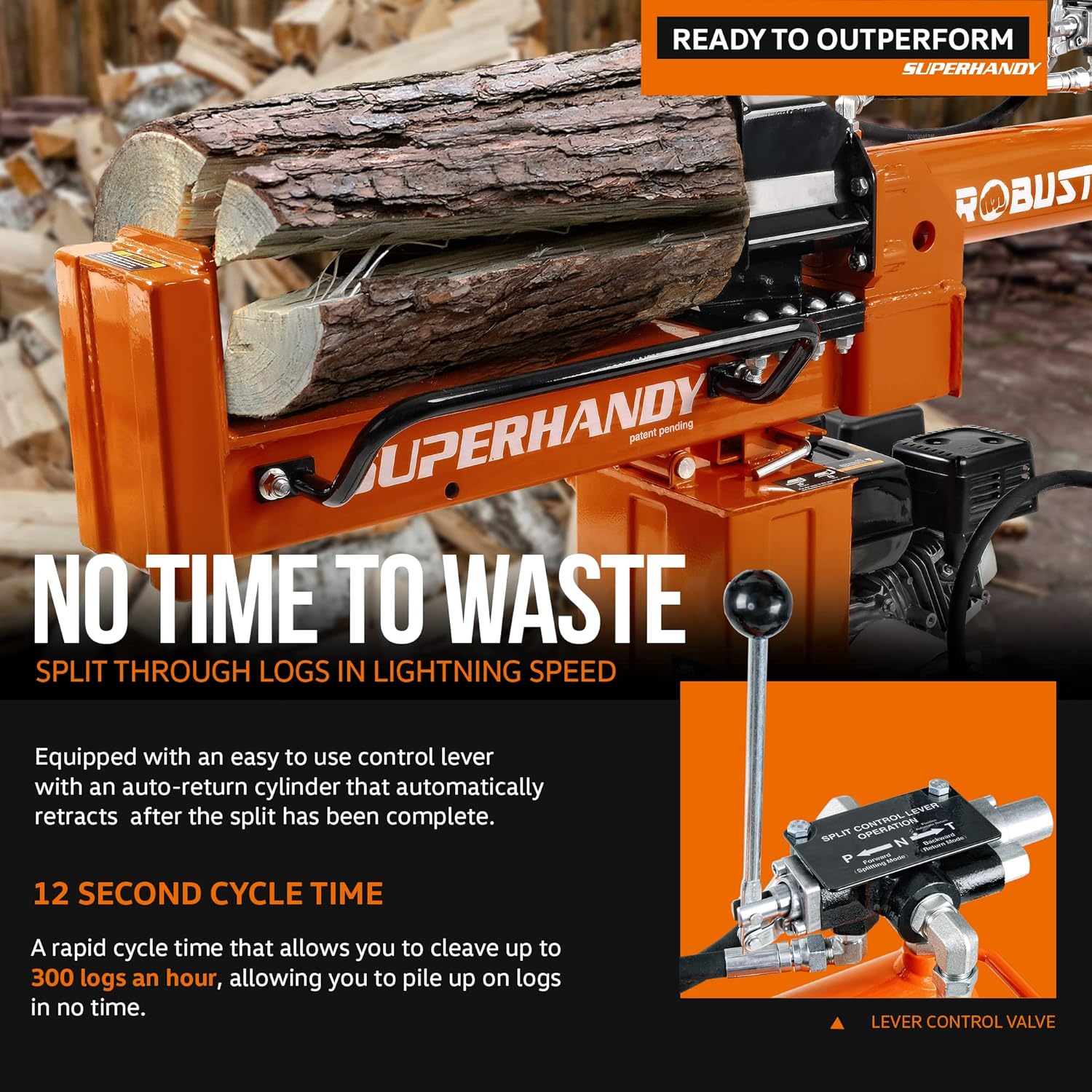

- Rapid Auto Return push-rod for fast and efficient log splitting

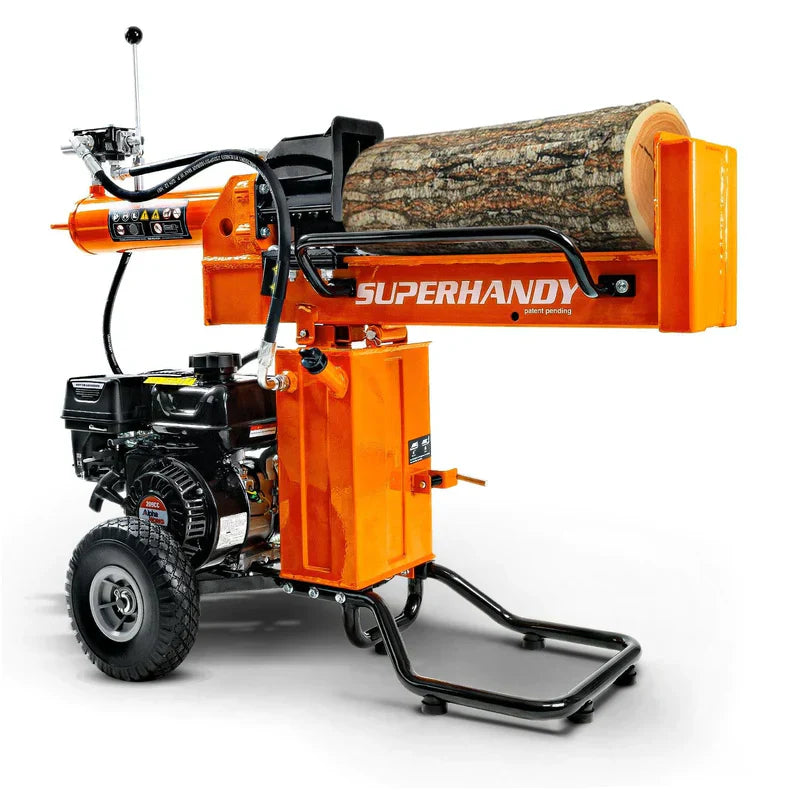

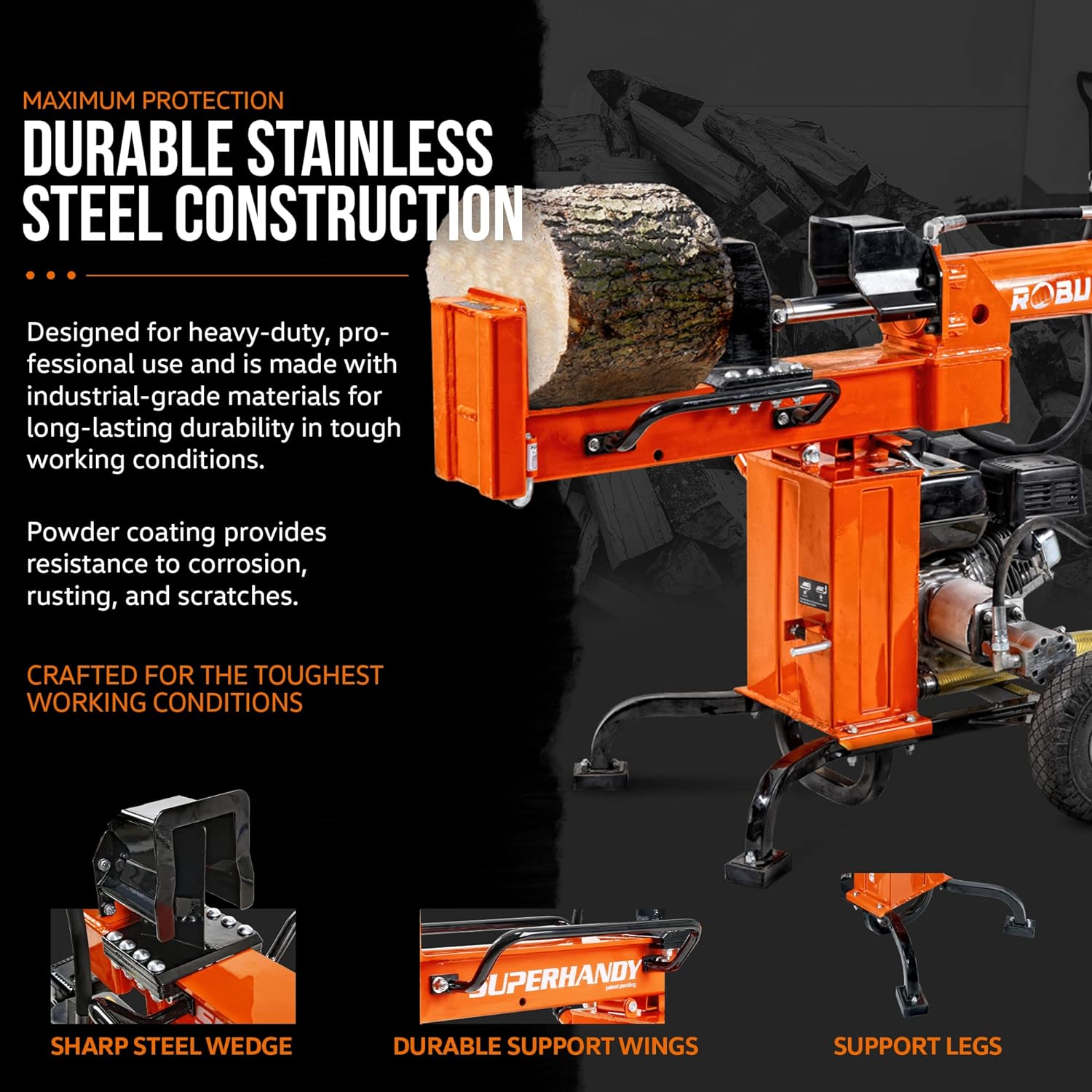

- Horizontal full beam and steel wedge design for maximum splitting power and portability

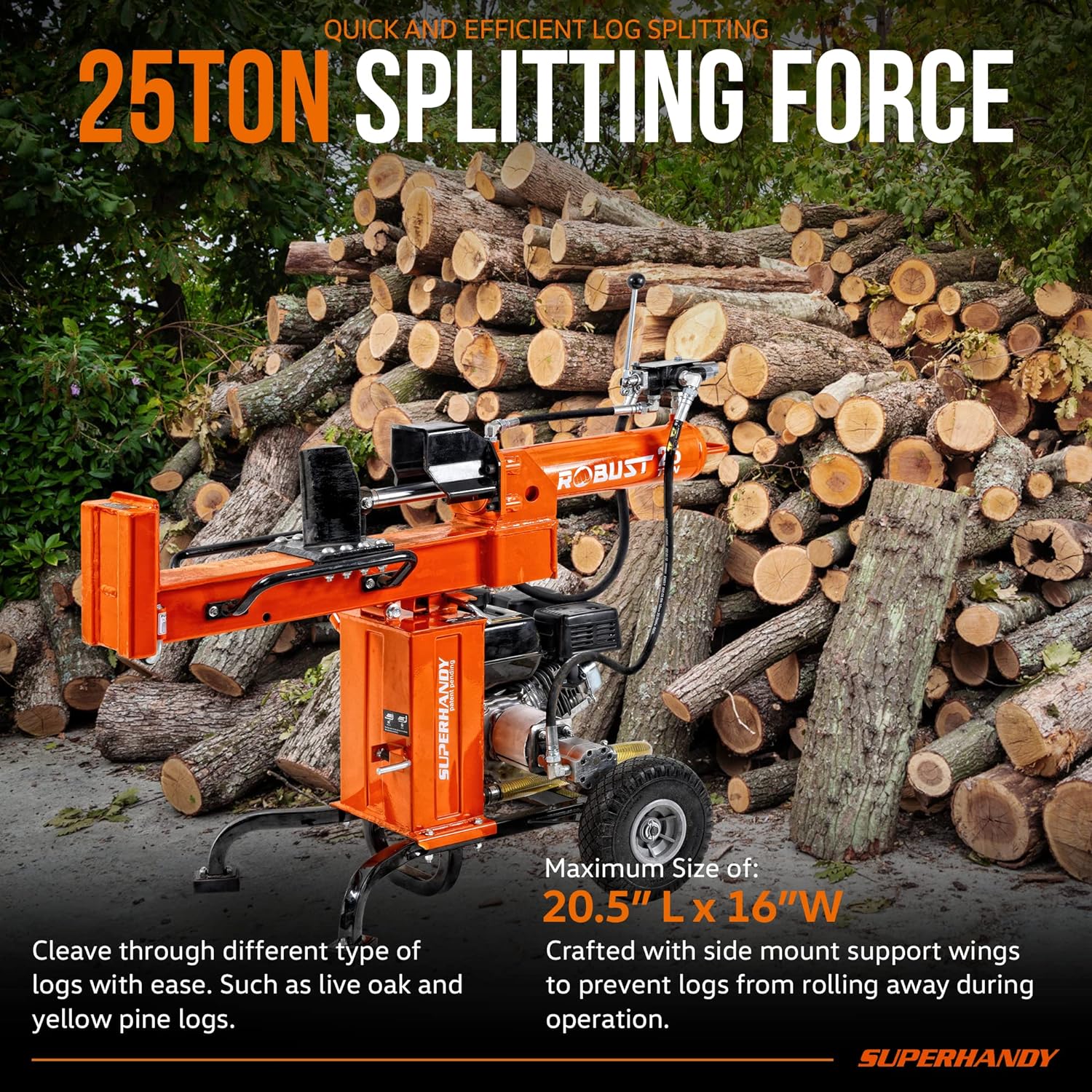

- Ability to split logs up to 20 inches in length and 16 inches in diameter for versatile use

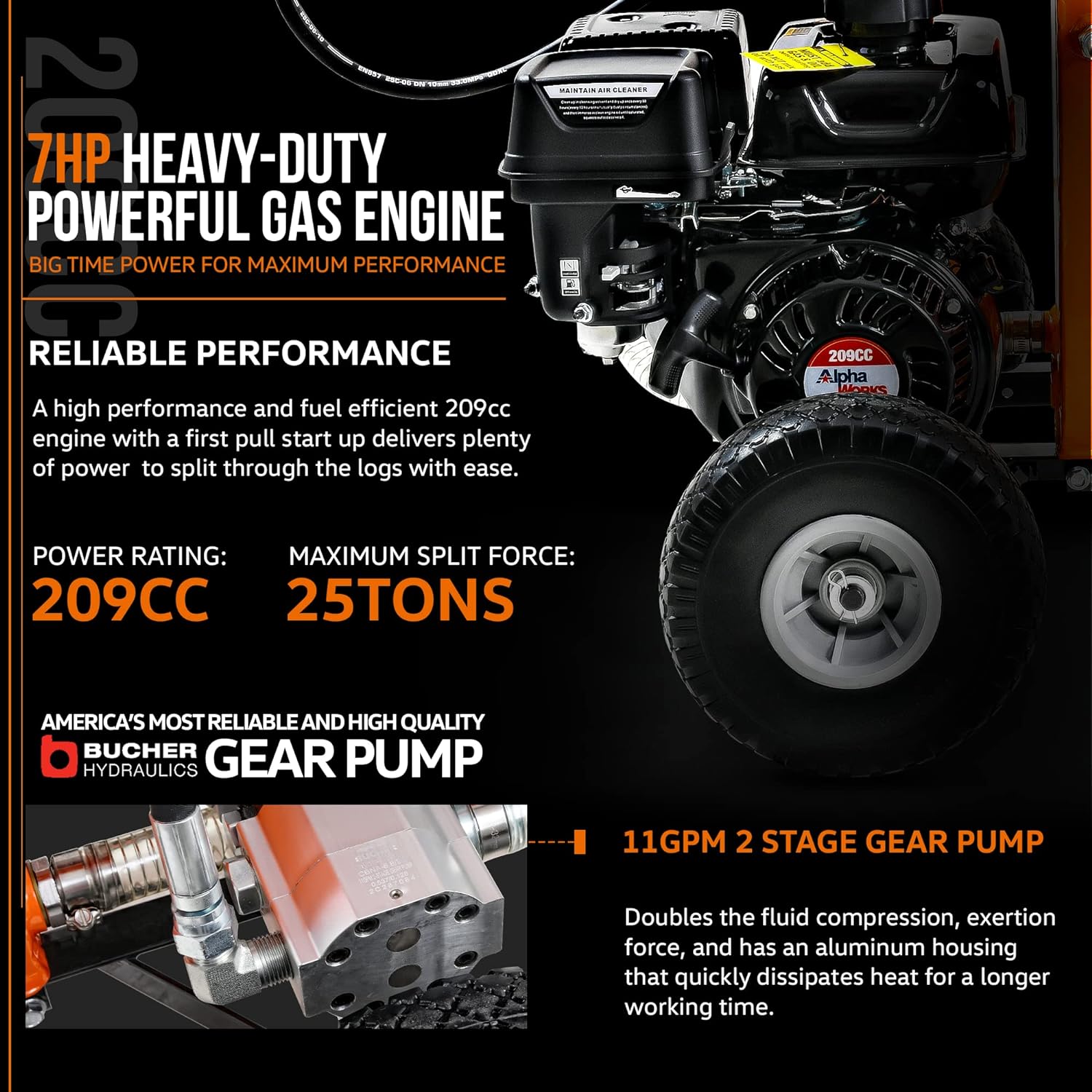

- A heavy-duty AlphaWorks 7HP gas engine powers our 25-Ton rated hydraulic system. Utilizes the reliable and trusted 2-Stage Bucher Hydraulic Gear Pump. Our Rapid Auto Return gets you splitting as fast as you can load it. Easily split logs up to 20″ inches in length and up to 16″ inches in diameter
- GUO096 User Manual
Detailed Specifications
Brand / Model:
SuperHandy GUO096
Operating Position:
Horizontal/Vertical
Force / Tonnage:
25 Ton – 50,000 lbs
Fuel Type:
Gasoline – Non-ethanol rec.
Cycle Split Time:
12 Seconds (Approx.)
Log Opening:
20 Inches

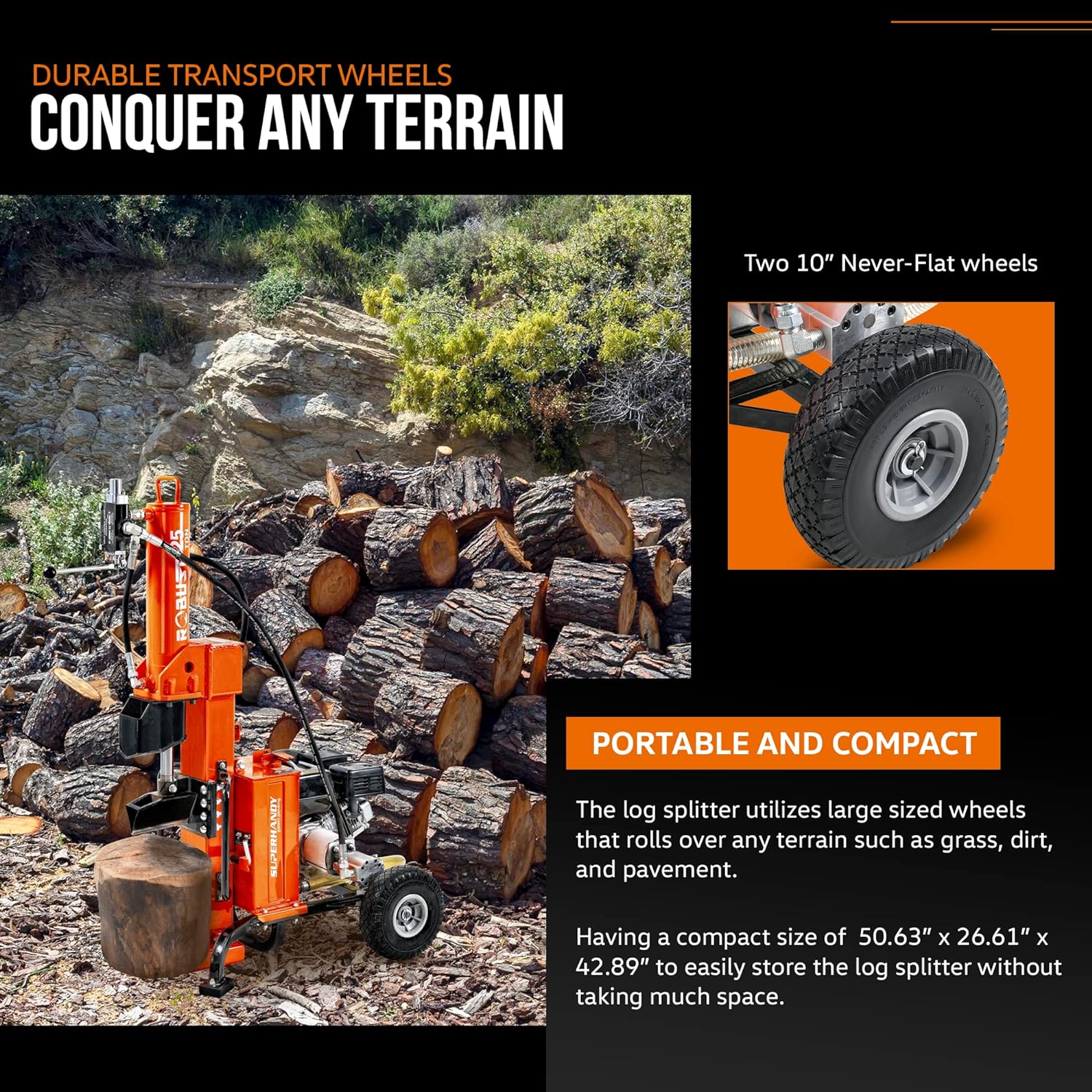

Wheels & Tires:
10″
Road Towable:
No
Engine / Recoil Start:
AlphaWorks 7HP (209cc)
Size assembled:
51″ long x 27″ wide x 43″ high
Hydraulic System:
2.1 – 2.5 gallon capacity (tank, cylinder, and hoses)
Safety Control Valve:
Detent, Auto Return
Pump:
11 Gallons Per Minute
Net Weight:
196 LBS
Hydraulic Cylinder:
16″ Stroke length
Max Pressure:
3000 PSI
Warranty:
1 Year
