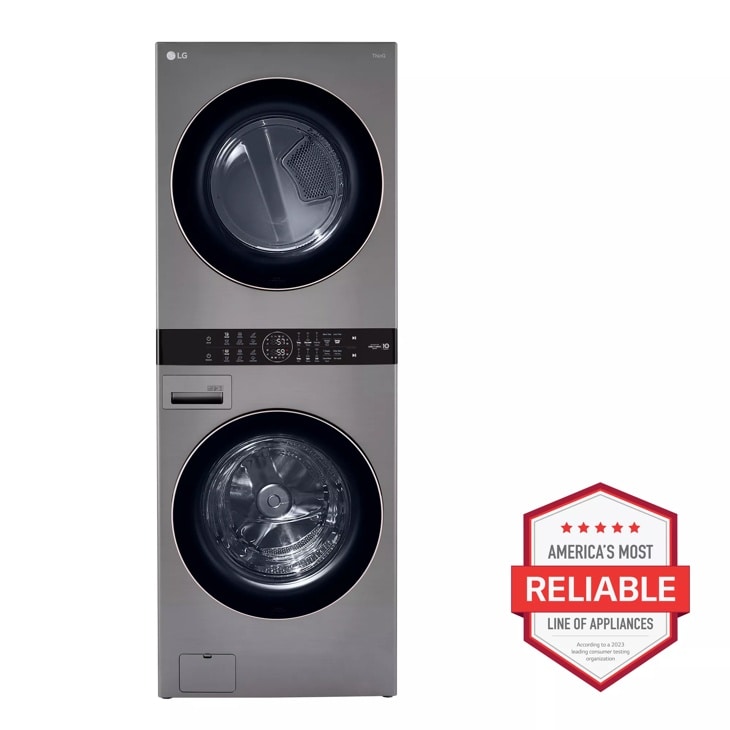

- Ultra Large Capacity 4.5 cu.ft. Washer and 7.4 cu.ft. Dryer let you clean larger loads

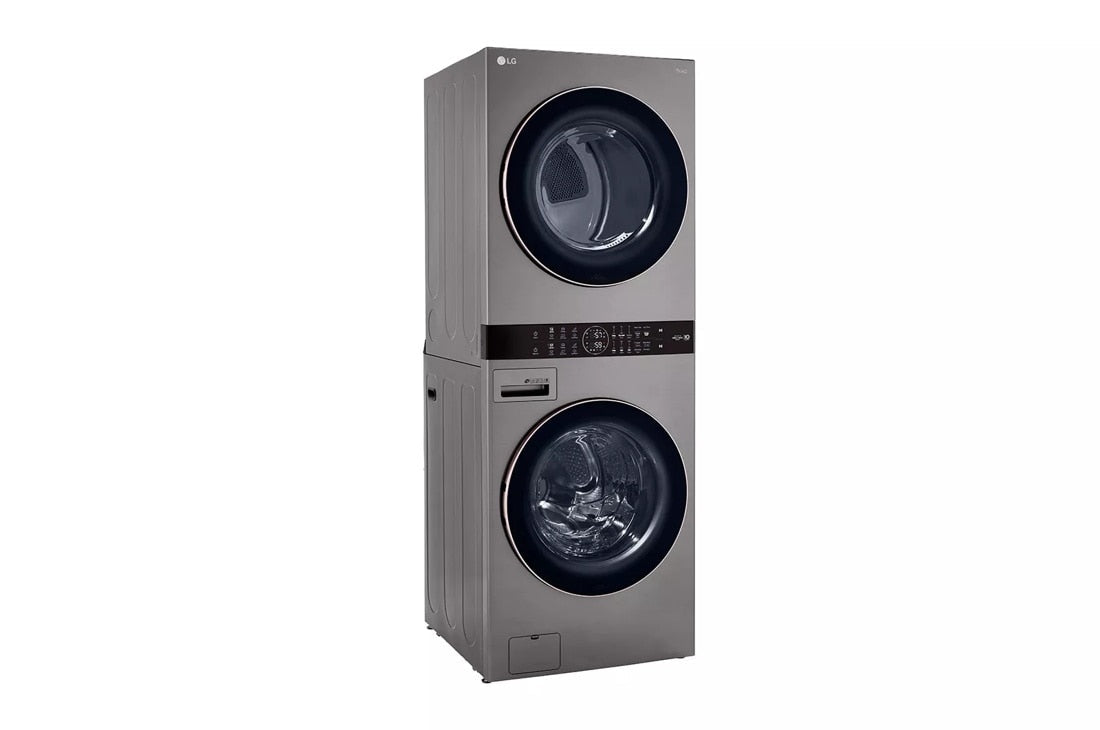

- Single Unit Vertical Design takes up half the floor space

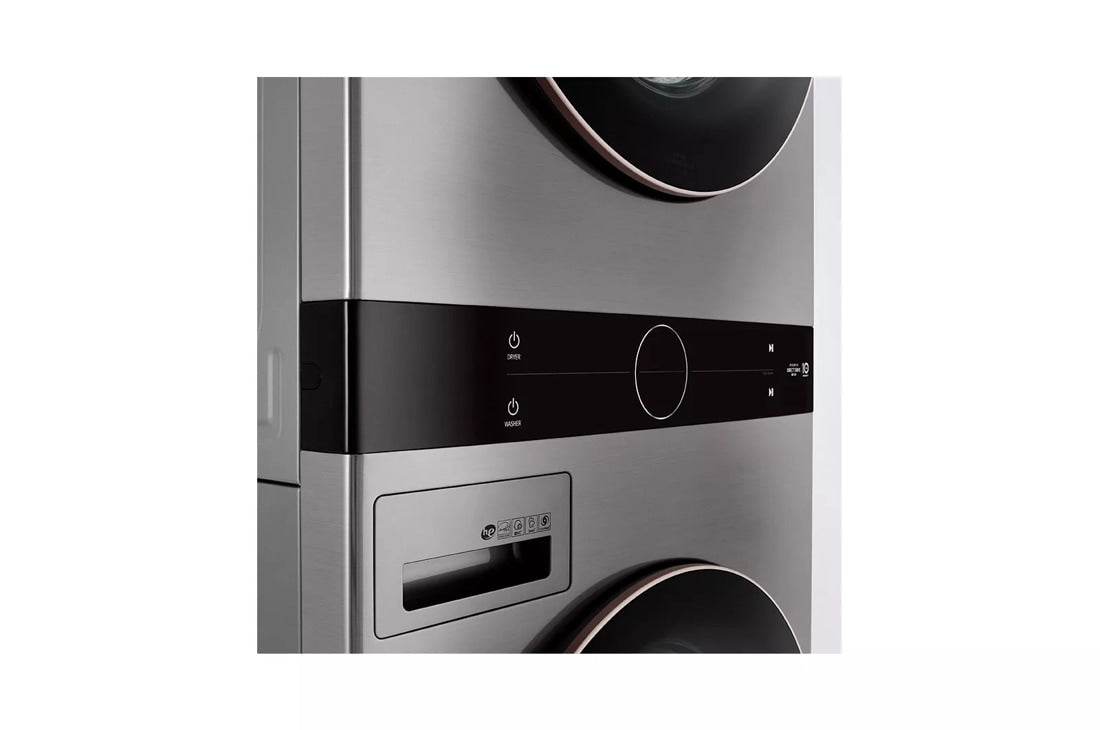

- Our Sleekest Center Control® Yet –LED display makes it easier to reach the controls
- Built-in intelligence takes out the guesswork—AI technology selects optimal wash & dry settings
- Advanced washing performance with Allergiene™ Wash Cycle
- Get the ThinQ® app to access smart functions and ThinQ Care™ alerts
- Premium looks with real tempered glass doors designed to last
-
Dryer Programs
- No. of Dryer Programs6
- Dryer ProgramsBedding, Delicates, Downloaded, Heavy Duty, Normal, Small Load
- No. of Dryer Options7
- Dryer OptionsControl Lock, Energy Saver, Less Time, More Time, Wi-Fi / Remote Start, Signal, Wrinkle Care
- Drying LevelsDamp, Less, More, Normal, Very
- Manual Dry Times60 min., 50 min., 40 min., 30 min., 20 min.
- Temperature SettingsHigh, Low, Low/Medium, Medium, Medium High
-
Laundry Appliance Capacity
- Washer Capacity4.5 cu.ft.
- Dryer Capacity7.4 cu.ft.
-
Summary
- Product ColorGraphite Steel (V)
- Delay WashYes
- Full Touch Electronic Control Panel with LED DisplayYes
- Electric Dryer OptionWKE100HVA
- Gas Dryer OptionWKG101HVA
- SeriesWashTower™
- Touch ButtonsYes
- TypeSingle Unit Front Load Washer and Dryer
- Center Control®Yes
-
Energy
- CEE TierTier 2
- CEF3.94
- ENERGY STAR® CertifiedYes
- IMEF2.92
- IWF2.9
-
Washer Programs
- No. of Washer Programs6
- Washer ProgramsBedding, Delicates, Downloaded, Heavy Duty, Normal, Speed Wash
- No. of Washer Options9
- Washer OptionsSanitary, Signal, Control Lock, Tub Clean, Wi-Fi / Remote Start, Delay wash, Extra Rinse, Pre-wash, Steam
- No. of Wash/Rinse Temps5
- Wash/Rinse TempsCold, Cool, Hot, Very Warm, Warm
- No. of Spin Speeds5
- Spin SpeedsHigh, Low, Medium, Medium / High, No Spin
- Water LevelsLoad Sensing
- No. of Soil Levels5
-
Fabric Care Features
- AI DD®Yes
- AI Sensor Dry™Yes
- Allergiene™ CycleYes
- Precise Temperature Control with Variable HeaterYes
- Sanitary CycleYes
- Sensor DryYes
- Steam TechnologyYes
-
Laundry Appliance Convenience Features
- 3 Minute Installation CheckYes
- 4 Adjustable LegsYes
- 4 Tray DispenserPrewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener
- Auto Suds RemovalYes
- Control LockYes
- Drum LightYes
- End of Cycle SignalYes
- Leveling LegsYes
- LoadSenseYes
- Wrinkle Care OptionYes
- Remaining Time Display/Status Indicator(s)Yes
- Reversible DoorNo
- Cabinet Vibration SensorYes
- True Balance® Anti-Vibration SystemYes
- FlowSense™ Duct Clogging IndicatorYes
- Internal Water HeaterYes
- Vent TypeVented
- Venting Option3 Way Venting
-
Laundry Appliance ThinQ® Smart Features
- ThinQ® Smart TechnologyYes
- Energy MonitoringYes
- Remote Start and Cycle MonitorYes
- Smart PairingYes
- SmartDiagnosis™ (v3.0)Yes
- ThinQ Care™Yes
- Tub Clean CoachYes
- WifiYes
-
Motor
- AxisHorizontal
- Max RPM1300
- Motor TypeInverter Direct Drive Motor
-
Materials and Finishes
- All Available ColorsGraphite Steel (V), White (W)
- Aluminized Alloy Steel DrumYes
- CabinetPainted Steel
- Control PanelPlastic
- Door / RimLarge Circle Shiny Rose Gold Rim
- Door CoverTinted Round Tempered Glass
- NeveRust™ Stainless Steel DrumYes
- Top PlateSteel
-
Certification
- AAFAYes
-

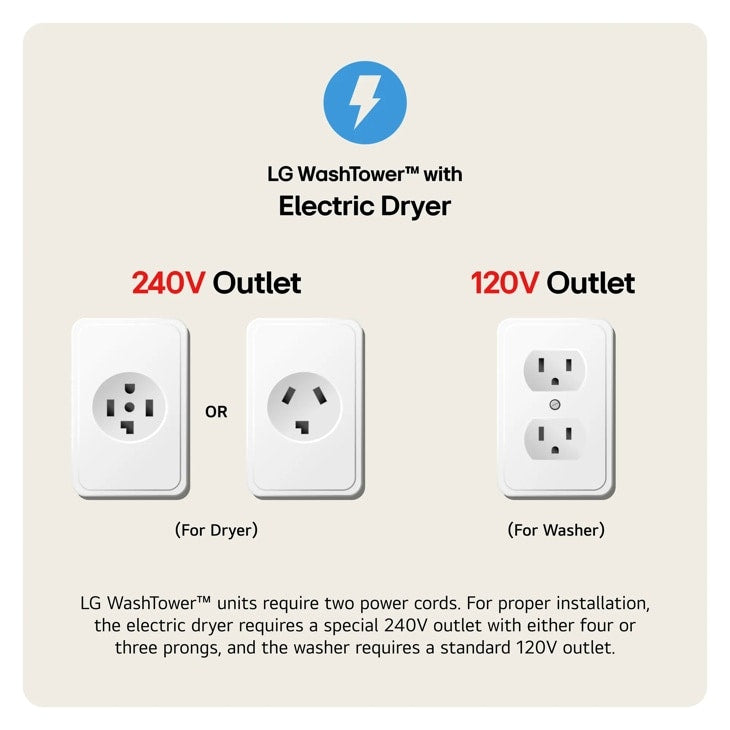

Power Source
- Dryer Power Source TypeElectric
- Washer Electrical Requirements120V, 10Amps
- Dryer Electrical Requirements240V, 30 Amps
- RatingsCSA Listed
- Washer Power Source TypeElectric
-
Options/Accessories
- LP Conversion Kit383EEL3002D
- Side Venting Kit3911EZ9131X
-

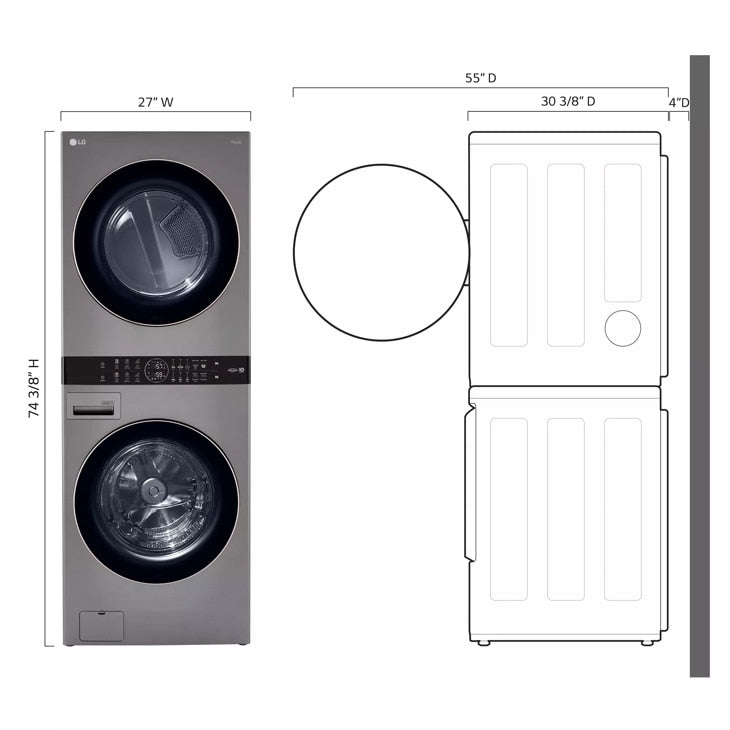

Dimensions
- Carton (WxHxD)30 1/16″ x 79 11/32″ x 32″
- Depth with Door Open55″
- Product (WxHxD)27″ x 74 3/8″ x 30 3/8″
- Weight (Product/Carton)311 lbs / 346 lbs
-
Warranty & UPC
- Direct Drive Motor10 Years
- Drum3 Years
- Parts and Labor1 Year
- UPC048231029353
