- Dry Boost™ Technology
- Third Rack
- 4 Bottle Wash Jets
- Dimensions: 34 H x 23.75 W x 24 D
-
ACCESSORIES
- Optional 12′ Drain HoseOptional hose kit (WD24X10065)
-
APPEARANCE
- Color AppearanceFingerprint Resistant Slate
- Control Panel ColorColor Matched
- Door AppearanceFull-length door
- Door StyleLong Door with Front Controls
- HandleRecessed
- Handle ColorFingerprint Resistant Slate
-
InstallationSide or Top Included
Built-Up Floor Capable
Flush Cabinet
-
ECONOMICAL / QUIET
-
Door InsulationInsulation
Mastic - Motor TypeVariable Speed
- Outer WrapBitumen
-
Quiet FeaturesQuiet Water Valve
Sealed Toe Kick
Tub Collar Trim - Quiet Package47 dBA
-
Door InsulationInsulation
-
FEATURES
- Additional ProtectionActive Flood Protect
-
Control TypeFront Controls
8 Touchpads
Cap Touch Controls - Cutlery TrayOne piece removable 3rd rack
-

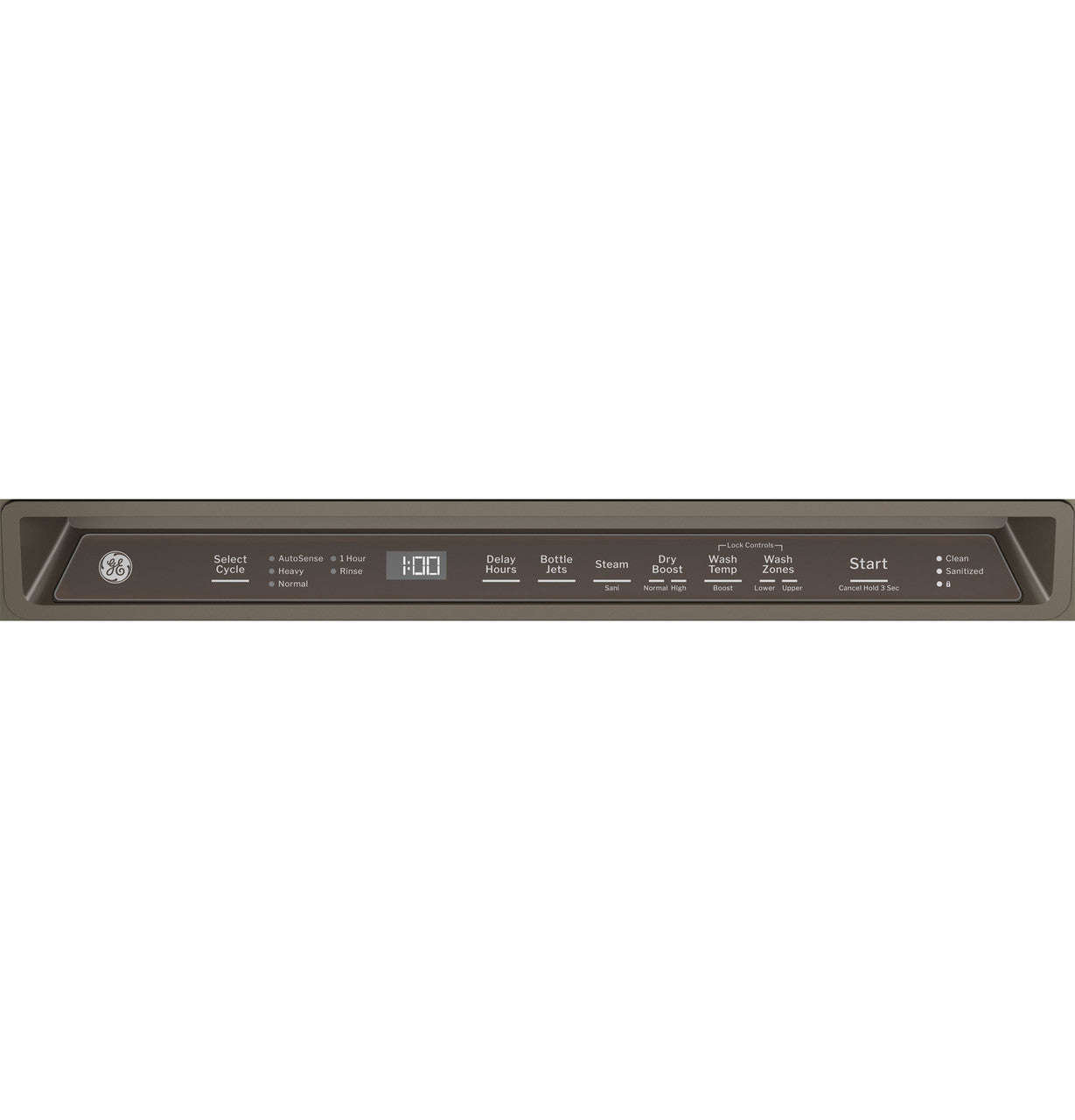

Dishwasher Control Features3 Digit Display Cycle Countdown with Bi-Color LED Status Light on door
1 “Clean” Light, 1 “Sanitized” Light Cycle Progress Indicators
Last Cycle Memory
Audible End-of-Cycle Signal
Control Lock with 1 Light -
Dishwasher CyclesAutoSense
Heavy Wash
Normal Wash
1 Hour Wash
Rinse -
Dishwasher Drying FeaturesNormal, High, Off
Dry Boost™ -
Dishwasher OptionsDelay Start 1-12 Hr.
Child Lock
Start/Cancel
Bottle Jets
Steam + Sani (Certified to NSF Standard 184)
Dry Boost™ (High)
Dry Boost™ (Normal)
Wash TempBoost
Wash Zone Lower Only
Wash Zone Upper Only
Sabbath Mode - DispenserRinse Aid with Indicator and Adjustment
- Exterior StyleTraditional
- LatchCenter Pull
- Leveling System4 Leveling Legs
- Lower RackBall-Tip Tines
- Number of Cycles5
- Number of Options11
- Number of Place Settings16
- OU CertifiedNo
- Product TypeBuilt-In
- Rack ColorSilver
-
Rack FeaturesBall-Tipped Tines
Adjustable Upper Rack
1 Piece Silverware Basket with 3 Cell Covers - Racking MaterialNylon
- Racking SystemFull 3rd rack
- Sabbath ModeYes
- SensorClean
- Showroom Power ModeYes
- StyleBuilt-In Front Control
- Top Rack/3rd RackYes
- Tub and Door LinerStainless Steel
- Tub TypeTall Tub
-
Upper RackRemovable
Height Adjustable
Ball-Tip Tines -
Wash Arms3 Wash Levels
Lower
Middle
Upper
Bottle Jets -
Wash System FeaturesVariable Speed Dual Pumps and Motors
Automatic Temperature Control
Drain Pump
Piranha™ Hard Food Disposer with removable filter
Automatic HotStart
Bottle Jets (4) -
Wash System600 Series
3-Level - Water Filtration System100% Filtration with Piranha Hard Food Disposer and Removable Filter
- WiFi ConnectOptional (Requires part no. PBX23W00Y1)
-
POWER / RATINGS
- Calrod Heater Watts800/500
- Electrical Requirements120V ; 60Hz ; 6.6A
- Energy Consumption (kWh/year)240
- Hertz60
- Power ConnectionOptional cord kit (GPFCORD – WX09X70910, WX09X70911)
- Volts/Hertz/Amps120V; 60Hz; 6.6A
- Watts936
-
WARRANTY
- Labor WarrantyLimited 1-year entire appliance
- Parts WarrantyLimited 1-year entire appliance
- Warranty NotesSee written warranty for full details
-
WEIGHTS & DIMENSIONS
- Approximate Shipping Weight112 lb
- Cabinet Depth24 in
- Cabinet Width24 in
- Cutout Depth (in)24
- Cutout Height (in)33.5
- Cutout Width (in)24
- Depth with Door Open27.5 in
- Depth Without Handle24 in
- Height w/ Legs Retracted – Minimum Height33.375 in
- Height w/Legs Extended – Maximum Height34.625 in
- Net Weight99 lb
- Overall Depth24 in
- Overall Depth with Handle24 in
- Overall Height34 in
- Overall Width23.75 in
