EG4 12000XP Off-Grid Inverter | 48V Split Phase | 24kW PV Input | 12kW Power Output

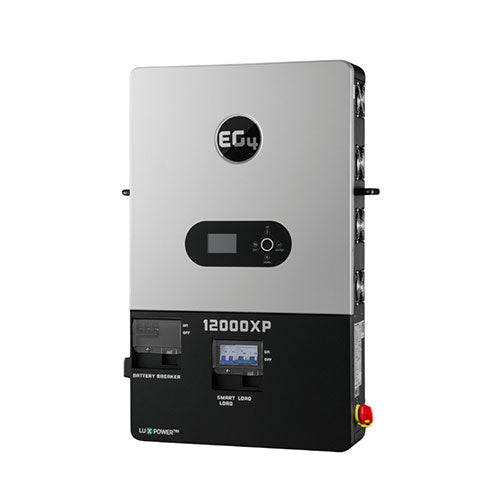

The EG4 12000XP is a powerful split-phase off-grid inverter designed to keep homes, cabins, and remote locations running smoothly. It stands out as the only off-grid ESS system that can handle up to 24 kW of solar input without requiring a combiner box, and its dual MPPT design helps you capture as much solar energy as possible. Created for tough off-grid conditions, it offers strong system management, seamless battery compatibility, and expandable performance for anyone looking to build a long-lasting, independent power setup.
The EG4 12000XP works well for a wide range of setups—from residential homes and cabins to fully off-grid or remote locations that need steady, high-capacity power. It can also be used in commercial or light industrial environments where expandable storage and multi-inverter options are important. Whether you’re building a hybrid system, securing reliable backup power, or running a complete off-grid installation, this inverter is designed to handle it.
EG4 12000XP Off-Grid Inverter V2 Specs
- Nominal Power Output: 15,000W with PV input* / 12,000W without PV
- PV Input Capacity: Up to 24,000W (480 VDC max)
- Recommended Battery Capacity: >400Ah per inverter
- Battery Communications: Closed-loop compatible with EG4 48V batteries + supported brands
- Connectivity: Plug-in Wi-Fi module for EG4 App / EG4 Monitor
- Surge Capacity: 18kW (5 seconds)
- Dimensions: 34.25 × 20.87 × 5.91 in
- Operating Temperature: 32°F – 113°F (0°C – 45°C) @ full load
- Weight: 104.7 lbs
Model Note: 15 kW output is available only on V2 option. The Original model is maxed out at 12 kW.
EG4 12000XP Off-Grid Inverter V2 Features
- Accepts up to 480 VDC and 24 kW of solar input, reducing cabling requirements and simplifying system design.
- Maximizes solar energy production by independently tracking two PV strings for stable performance in changing conditions.
- Allows remote system monitoring and adjustments through the EG4 App or Monitor Center for added convenience and visibility.
- Integrates directly with EG4 48V batteries and supported brands for accurate charging, protections, and safe operation.
- Manages dedicated circuits or appliances through load shedding, AC coupling, or selective power delivery to increase system efficiency.
- Supports up to 16 units in parallel, enabling large systems up to 240 kW of total output.
Your Satisfaction with EG4 is Guaranteed:
- 5-Year Limited Warranty
- Lowest Price Guarantee
