AIMS Power 5000 Watt 48 Volt Pure Sine Inverter Overview
This new 5000-Watt Pure Sine Power Inverter, designed for harsh environments, has been completely overhauled and now boasts a dual GFCI outlet and is FCC certified. This product also includes a thermally controlled fan, allowing for increased efficiency and less noise. It will continue to put out stable, pure sine power and maintain output voltage, even as you battery bank voltage decreases.
High output performance is achieved through a DSP (Digital Signal Process) drive. This inverter is ideal for running nonlinear loads (such as variable speed motors and small compressors). Pure sine power is also preferred for LaserJet printers, sensitive electronics, computer servers, microwaves, medical equipment, any with a circuit board and cordless drill battery chargers. An external battery voltage sensor will allow you to monitor your battery capacity and power consumption.
Packed with 5000 watts of power, this inverter can be used for off-grid home back up power systems, solar, boat, work vehicles and RVs. We designed this inverter to be more efficient operating at 48 VDC at higher loads.
Power inverters have become a staple in businesses and homes around the world due to intermittent brown and black-outs. AIMS Pure Sine Wave Power Inverters provide reliable transformation of DC power from a battery (such as the one in a car or RV) into AC power that can then be used to run lights, computers, printers, televisions, medical equipment, power tool chargers, laser printers, electric shavers, microwaves, variable speed motors, TV’s, and a broad range of appliances.
And when it comes to selecting an inverter it’s helpful to know that AIMS Pure Sine Wave inverters represent the most technologically advanced lightweight compact and diverse inverters on the market to help ensure the widest use of applications. For over a decade the AIMS’ Power Pure Sine Wave Power Inverters has consistently delivered the broadest range of sizes to accommodate virtually every power requirement.
Advantages of a pure sine inverter:
- Equipment runs more efficiently
- Motors run cooler
- Cleaner power
To select the right inverter first determine what devices you would need to run in the event of a power outage. Then select the appropriate inverter that can carry the combined wattage requirements of these devices
AIMS Power 5000 Watt 48 Volt Pure Sine Inverter Features
- 5000 Watt continuous power
- 10000 Watt surge for 0.5 second
- 48 Volt DC input
- Pure sine wave
- 60hz or 50hz switch
- Highly efficient – improved output at low voltage
- 2 – GFCI Dual Outlet
- Direct connect AC Terminal Block

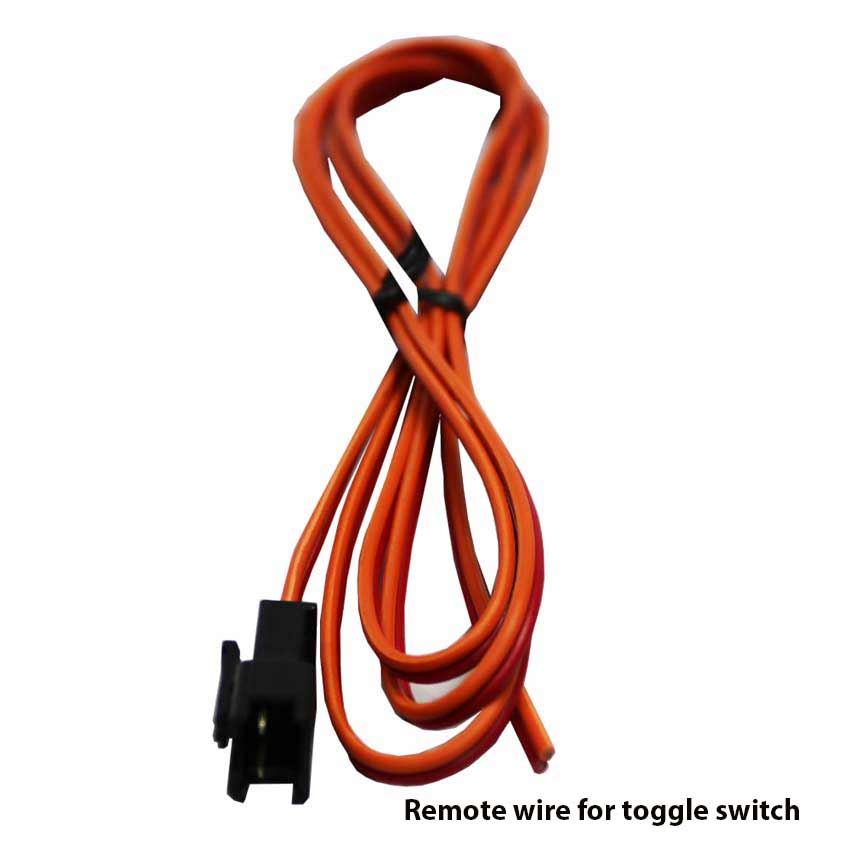

- Connector and cable for remote on/off switch
- Isolated ground & neutral
- Short circuit protection (GFCI and AC Breaker)
- On/off switch
- 5 Function Protection LED indicator
- AC Breaker
- DC volt meter included
- Dual cooling fans thermally controlled
Warranty & Support
- Instruction manual
- 1 year tech support
- 1 Year Warranty Parts and Labor replacement
AIMS Power 5000 Watt 48 Volt Pure Sine Inverter Specifications
- DC Input Voltage 48 V (41V-60V)
- Output Voltage no load 120Vac +/- 3%
- Continuous 5000 Watts
- Surge 10000 Watts
- 90% Efficiency @ full load
- No Load Current (Fan Off) 0.60A 48V
- No Load Current (Fan On) 1.08A 48V
- Low Battery Shut Down: 40.0V
- Low Battery Return on Power: 42.5V
- High Battery Shut Down: 62.9V
- High battery return on Power: 58.8V
- Frequency Selection 50/60hz
- Over Temperature Protection: -25ºC – 79ºC
- Cooling Fan on Temperature: 40ºC
- GFCI Outlets rated at 20A per block.
- Dimensions (inches) 23.75 x 8.88 x 6.25
- Weight: 27lbs.
